PIPELINE CLEANING PIGS

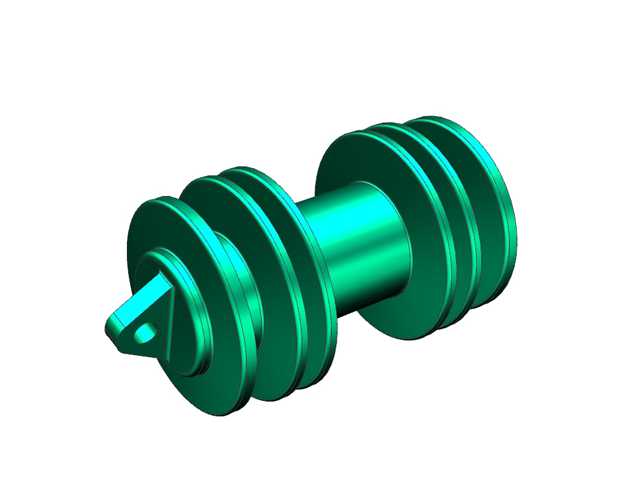

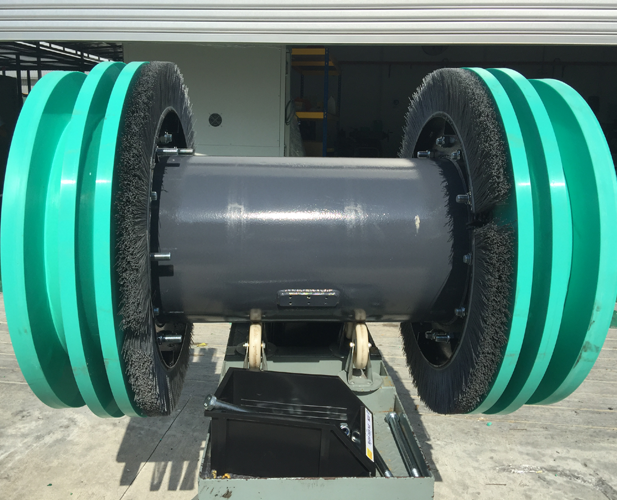

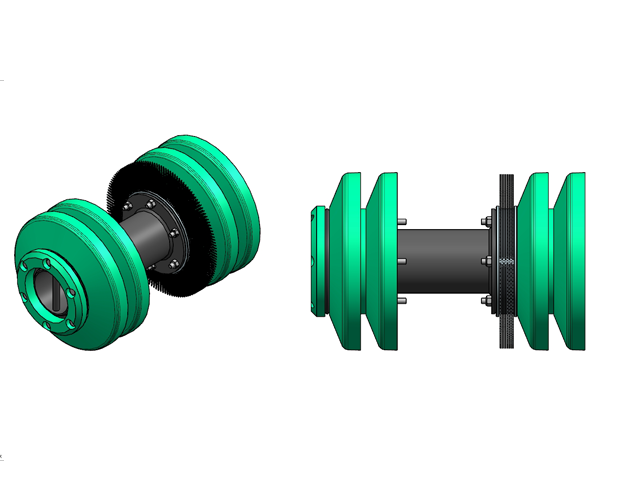

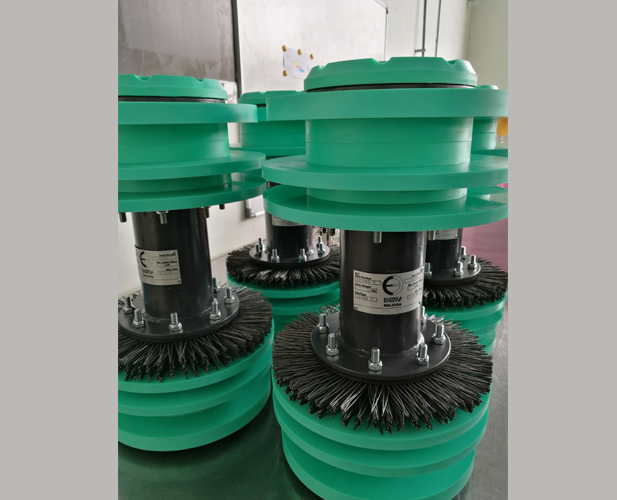

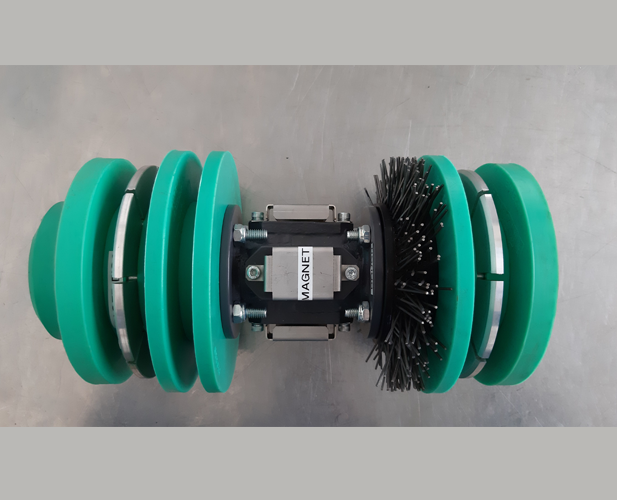

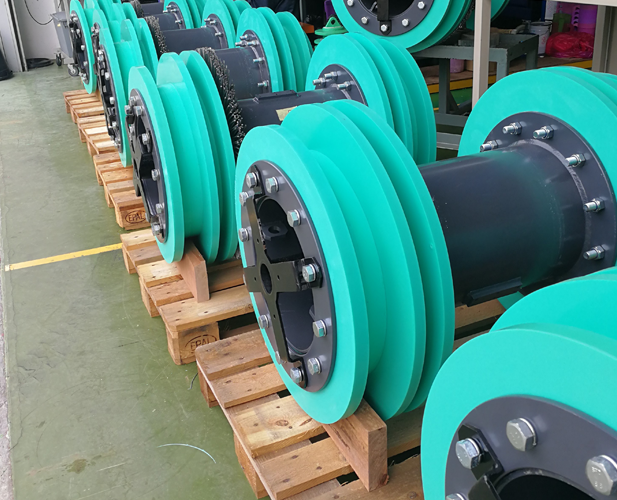

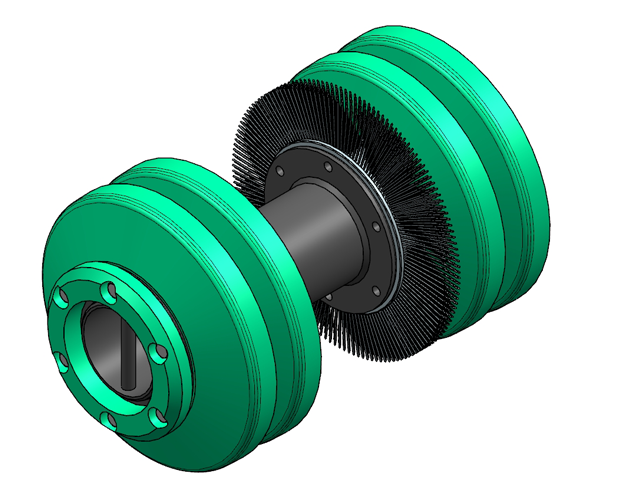

Bidirectional Pig

The Eureka Bidirectional Cleaning Pigs consist of various combination of high-quality polyurethane discs mounted on hollow metallic pipe. All parts are then secured with standardized durable fasteners avoiding spare part issues. Replacement of parts are relatively easy and fast thanks to excellent design considerations based on years of experience.
Eureka Bidirectional Cleaning Pigs can be equipped with various accessories such as brushes, magnets, gauge, transmitter and for some cases pig signaller trigger magnet.

Application:
1. Debris removal
2. Flooding
3. Dewatering
4. Batching
5. Gauging

Available Sizes:
4” to 48”

Min/Max Temperature:
100 Degree Celcius

Minimum Bend Radius:
3D (1.5D Upon Request)


Cup Pig

The Eureka Cup Pigs consist of high-quality polyurethane Cups and discs mounted on hollow metallic pipe. All parts are then secured with standardized durable fasteners avoiding spare part issues. Replacement of parts is relatively easy and fast thanks to excellence design consideration based on years of experience.

Eureka Cup Pigs can be equipped with various accessories such as brushes, magnets, gauge, transmitter and for some cases pig signaller trigger magnet.

Application:
1. Filling
2. Batching
3. Debris Removal
4. Product displacement

Available Sizes:
4” to 48”

Min/Max Temperature:
100 Degree Celcius

Minimum Bend Radius:
3D (1.5D Upon Request)


Specialised Pig

Bypass Pig
The Eureka Bypass Pigs consist of various combination of high-quality polyurethane discs mounted on hollow metallic pipe with additional bypass port installed at the centre front of the body. All parts are then secured with standardized durable fasteners avoiding spare part issues.

Eureka Bypass Pigs can be equipped with various accessories such as brushes, magnets, gauge and for some cases pig signaller trigger magnet.

Eureka Bypass Pigs is deployed to assist operational pigging on high condensate pipeline to avoid high surge of liquid flooding that may result to production trip.

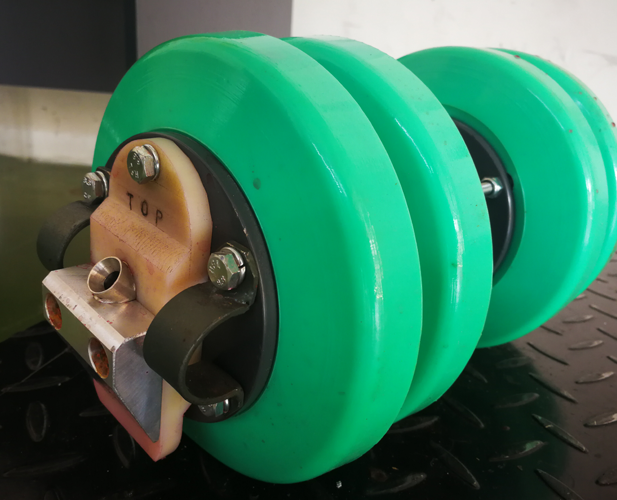

Spray Pig
The Eureka Spray Pigs consist of various combination of high-quality polyurethane discs mounted on hollow metallic pipe with additional spray nozzles mechanism installed at the centre front of the body. All parts are then secured with standardized durable fasteners avoiding spare part issues.

Eureka Spray Pigs is deployed to assist the operational pigging operation specifically in application of Corrosion Inhibitors and other liquid chemicals intended to be applied to the internal surface of the pipeline. Due to differential pressure created across the pig, the chemical liquid being suck and then sprayed to maximized the application coverage on the internal surface of the pipeline.

Dewaxing Pig

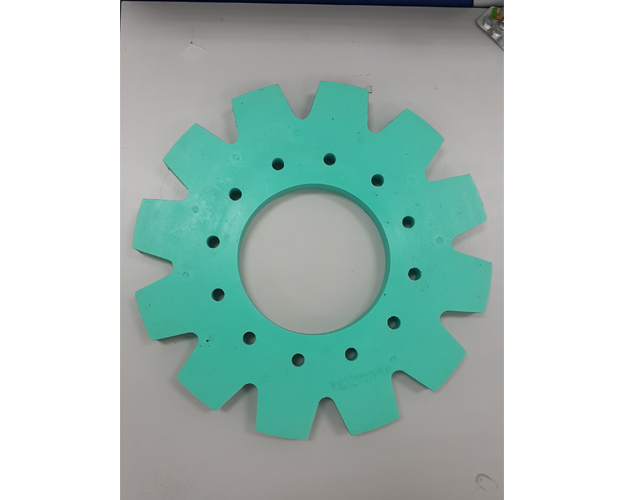

The Eureka Dewaxing Pigs come in 3 main designs, the Less Aggressive Single Module Dewaxing Pig, the Ploughing Scraper Dewaxing pig and the Adjustable Multi Module Dewaxing Pig. These designs consist of various combination of high-quality polyurethane discs and cups mounted on hollow metallic pipe. Additional parts to perform the dewaxing work is specially designed serrated guiding disc, additional metallic scraper and pre-installed twist knot brushes. All parts are then secured with standardized durable fasteners avoiding spare part issues.

With its wax cutting and ploughing effect, Eureka Dewaxing Pigs aim to remove heavy wax from pipeline. Eureka Dewaxing Pig deployed in Waxy Pipeline Progressive Pigging or Specialized Pigging Operation where standard cleaning pigs is less effective.

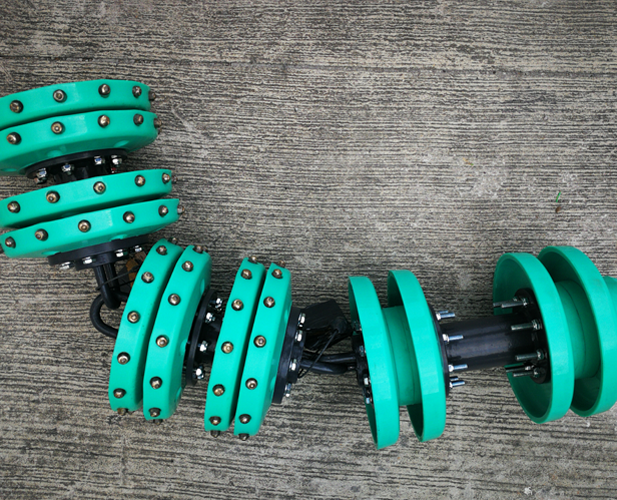

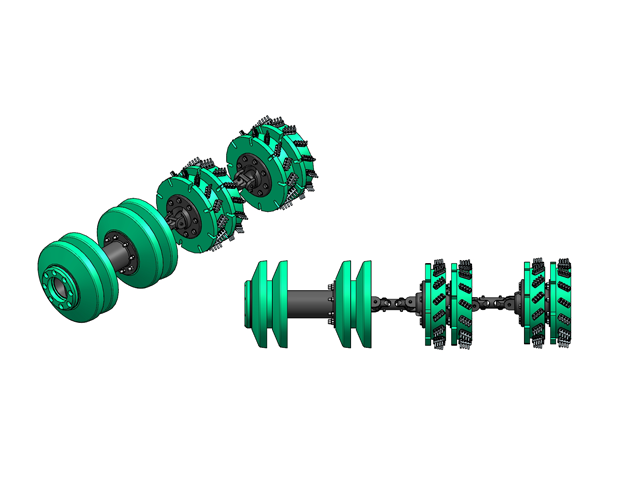

Descaling Pig
The Eureka Descaling Pigs come in 2 main designs, the Single Module Descaling Pig, and Multi Module Descaling Pig. Both designs can be adjusted to achieve different level of aggressiveness. These designs consist of various combination of high-quality polyurethane Cups and Disc mounted on hollow metallic pipe. Additional parts to perform the descaling work is specially design tungsten studded cups. All parts are then secured with standardized durable fasteners avoiding spare part issues.

Eureka Descaling Pigs aim to remove pipeline scales by crushing the scales using its heavy-duty tungsten stud. Eureka Descaling Pigs deployed in Scaled Issued Pipeline Progressive Pigging or Specialized Pigging Operation where standard cleaning pigs is less effective.

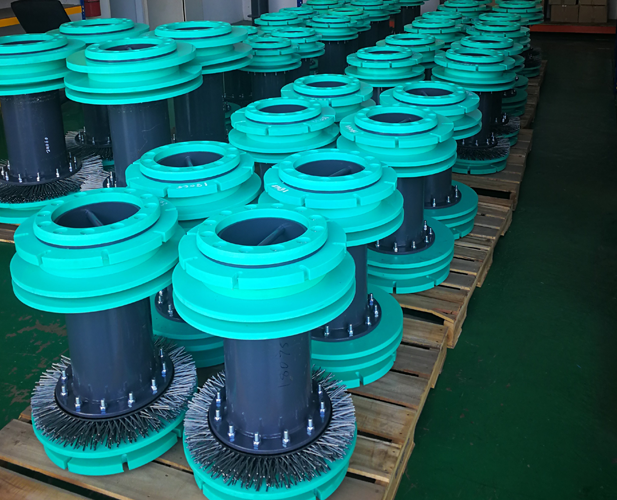

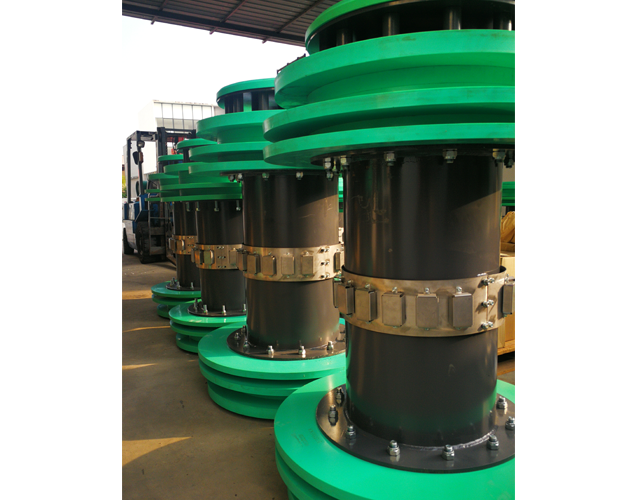

Multidiameter Pig
The Eureka Multidiameter Pigs consist of various combination of high-quality polyurethane discs mounted on hollow metallic pipe. All parts are then secured with standardized durable fasteners avoiding spare part issues.

Eureka Multidiameter Pigs can be equipped with various accessories such as brushes, magnets, gauge, transmitter and for some cases pig signaller trigger magnet.

For certain application especially the long-distance pipeline, support wheel may be deployed to support Eureka Multidiameter Pig negotiation various ID of the pipeline.

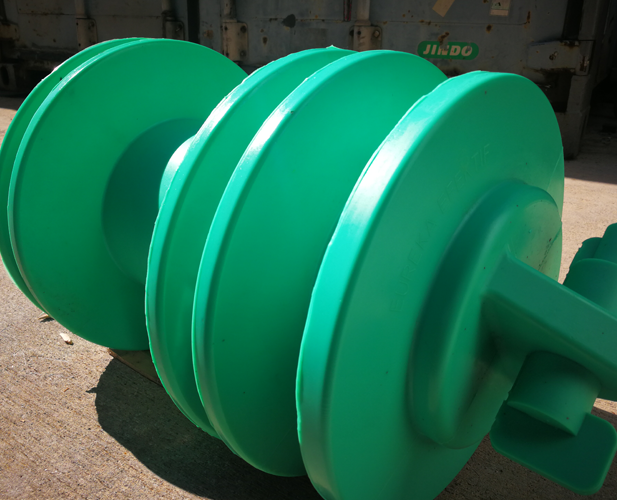

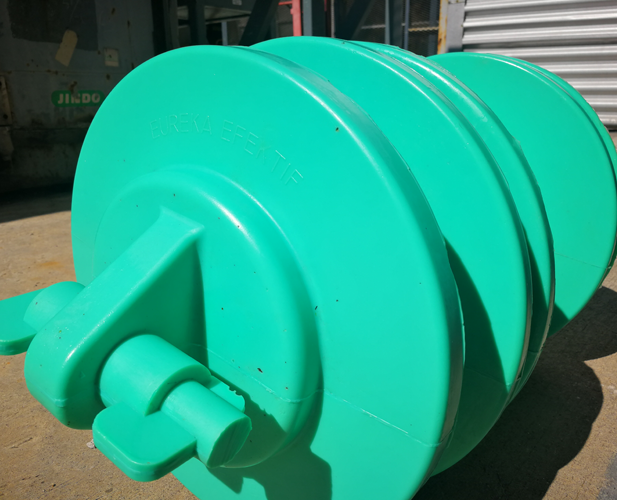

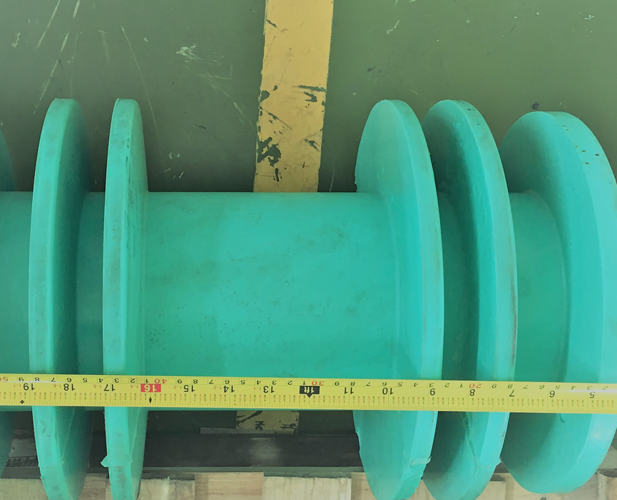

Polycast Pig

Eureka Polycast Pigs are manufactured from high quality Polyurethane material and can be casted into several configurations. Eureka Polycast Pigs can be used for product removal, batching, hydrostatic testing, and removal of paraffin, debris, or other buildup. Eureka Polycast Pigs are able to negotiate varying internal diameter of the same pipe size and tight-radius bends.


Cleaning Pig Spares and Accessories

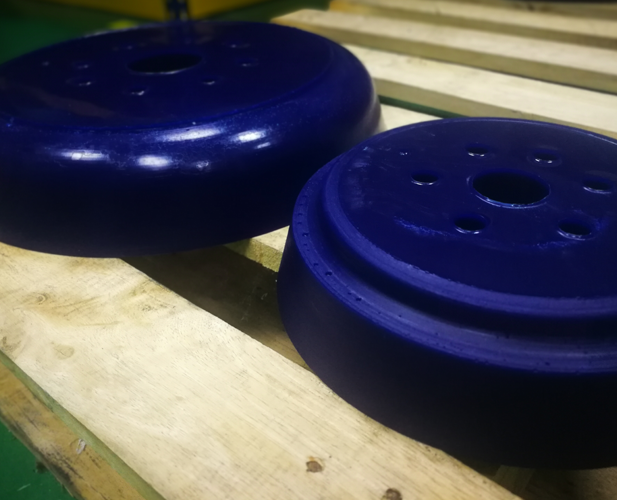

Cups

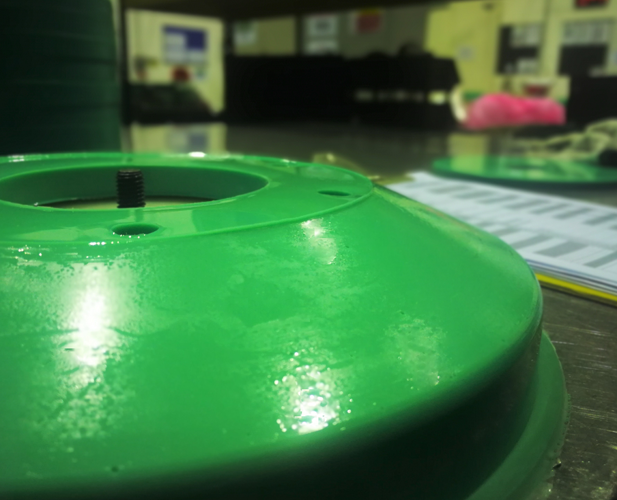

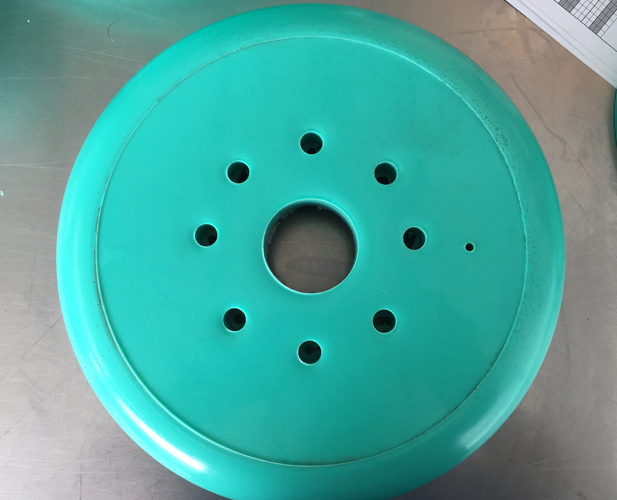

Eureka Cups are manufactured from high quality polyurethane material. Eureka Cups provide effective sealing making pipeline pigging operation highly efficient. Eureka Cups are easily installed on all Eureka Cup Pigs and for other type of pigs, for example ILI tools, a special custom design can be fabricated. Eureka Cups consist of 2 main design which are Conical Cups and Standard Cups.

Brushes

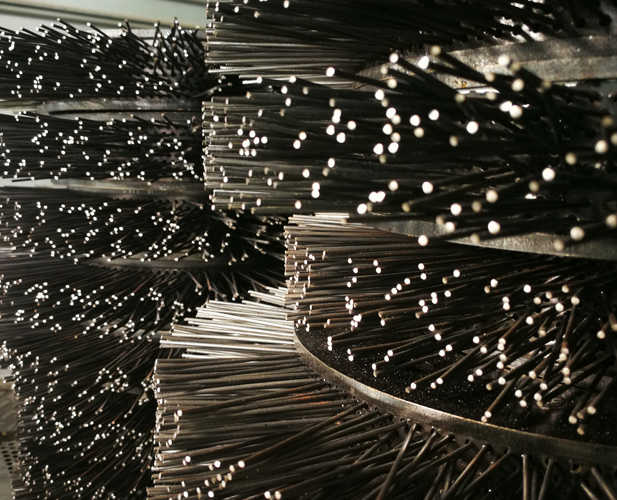

Eureka Brushes come in 3 main designs, which are half-moon circular, full circular and spring steel. Eureka Brushes can be manufactured from wire brush, stainless steel and nylon type of brush. The brush itself will have various design providing various level of cleaning effect.

Magnets

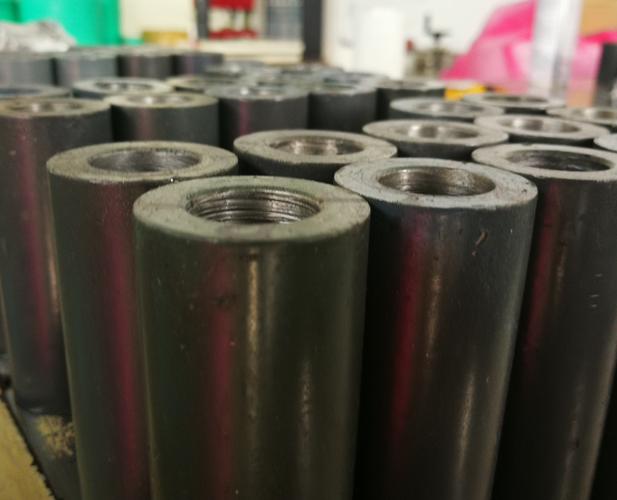

Eureka supply magnet as attachment to Eureka Pipeline Cleaning Pigs. The magnet are cased and mounted on the metal bodies of the pipeline cleaning pigs. Magnet can be supplied as magnet ring or cased magnet and can easily be installed on Eureka Pipeline Cleaning Pigs. Trigger magnet for Pig Signaller or Pig locator can also be installed on all metal bodied Eureka Pipeline Cleaning Pigs.

Gauge Plates
Eureka supply gauging plate made from aluminium. Gauge plate can be slotted or non-slotted type. The diameter of gauge plate will depend on the objective of gauging but normally range from 90% to 95% of internal diameter of the pipeline. The gauge plate can be mounted on Eureka Bidirectional Pigs or Cups Pigs. The Gauge Plate provide information of the roundness of the pipeline, geometry restriction of the pipeline and also can be configured to confirm bend radius of the pipeline prior ILI operation.


Pigging Support Equipment

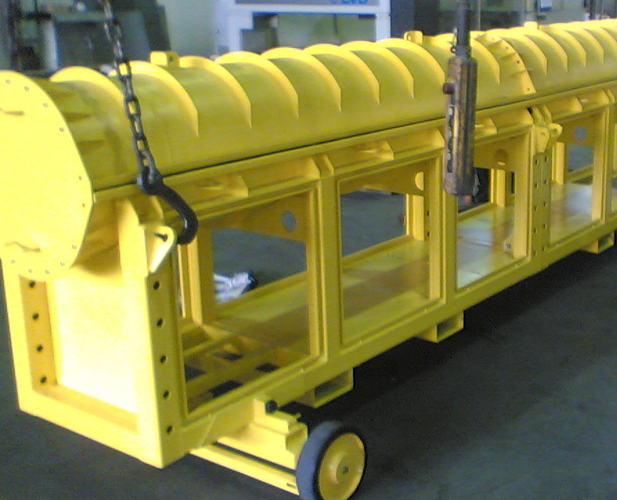

Pig Tray
Eureka manufacture pig tray used for transporting Pipeline Pigs, be it Pipeline Cleaning Pigs or ILI tools. The design of pig tray will be based on Client requirement with consideration of site operational conditions. Pneumatic or mechanical pusher can be added on to assist launching and receiving operation.

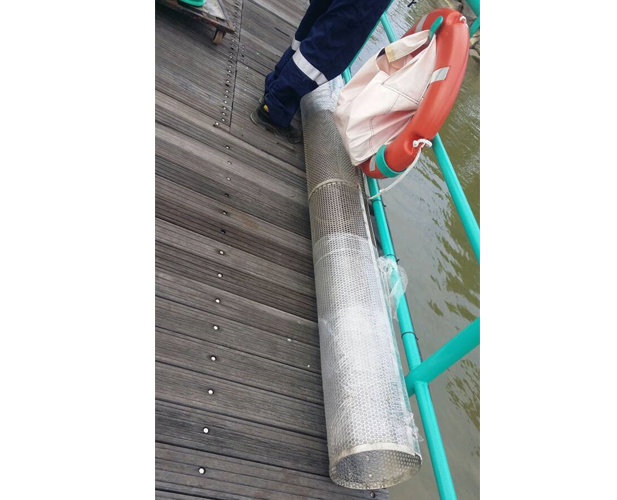

Pig Catcher
Eureka manufacture pig catcher in nearly every size and pressure rating. Perforated metallic sheet is rolled and welded to achieved desired diameter. The dimension or design of the holes and type of catcher will be fabricated according to customer specifications.

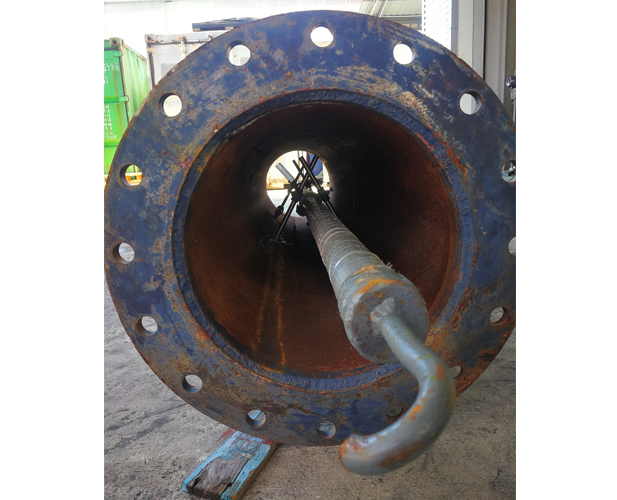

Pusher & Pulling Rod
Eureka manufacture Pusher and Pulling Rods to assist on pig insertion and retrieval operation. The rods consist of several poles connected together to achieve the required length. Hook and handle are supplied together with the rods. Roller is attached at several section of the rods to assist in centralizing the rods. Coating is applied to the pole to avoid sparks and if required, aluminium poles will be used for total spark free requirement.


Keep the Product Flowing

Over 10 years experience and knowledge, we are among the top pipeline maintenance solutions provider in both local and international spheres.
