Pipeline Cleaning Pigs

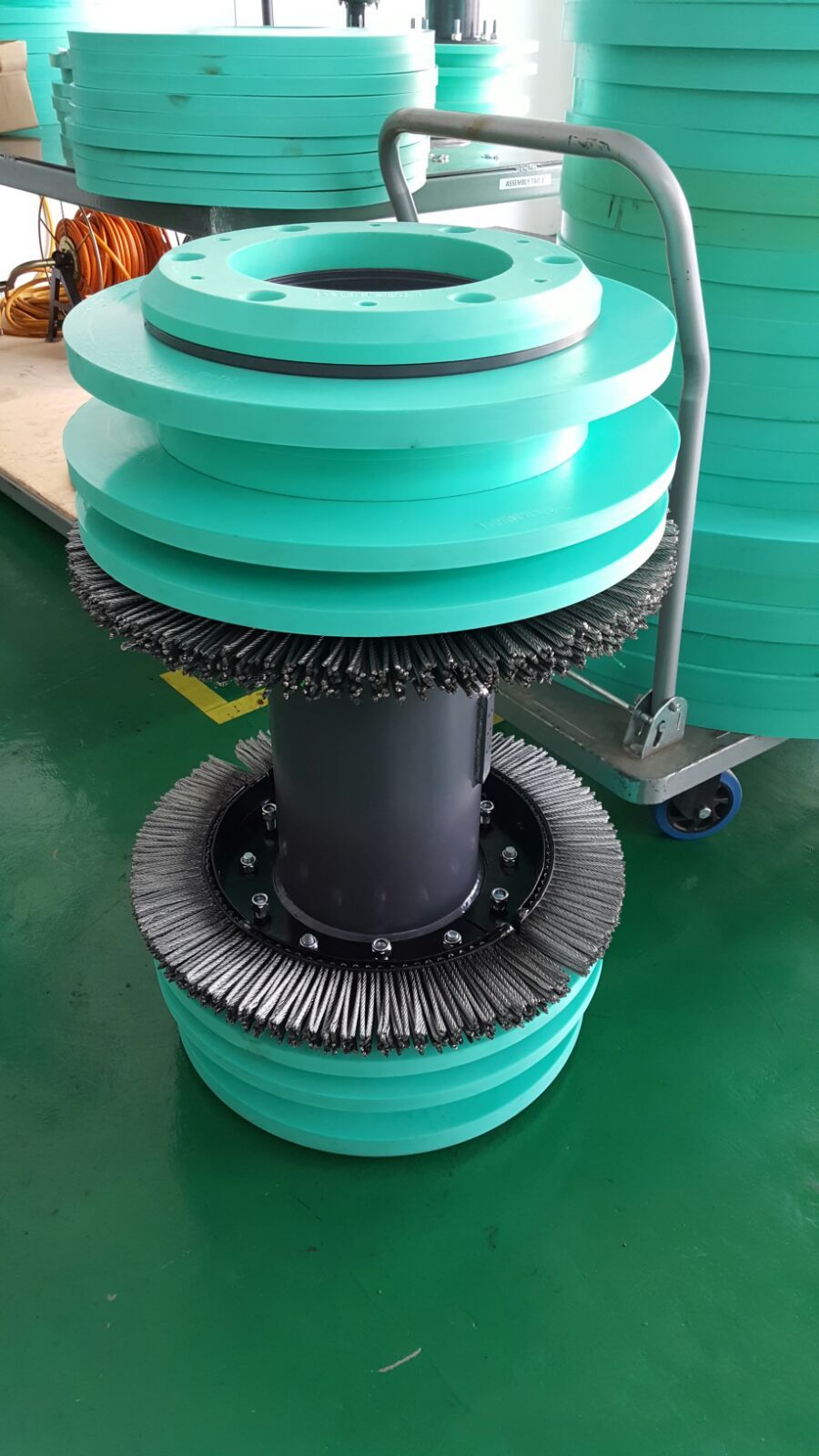

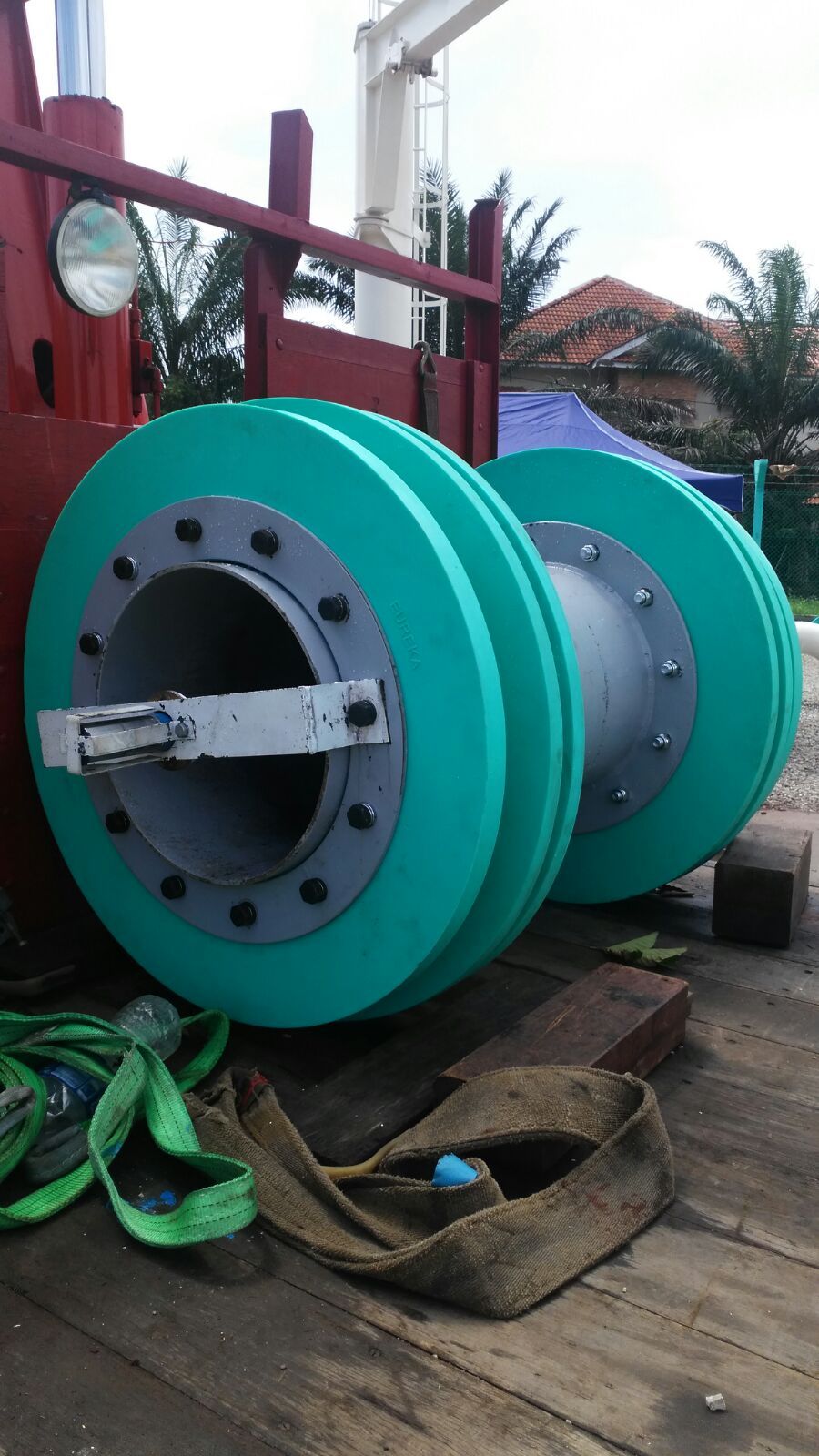

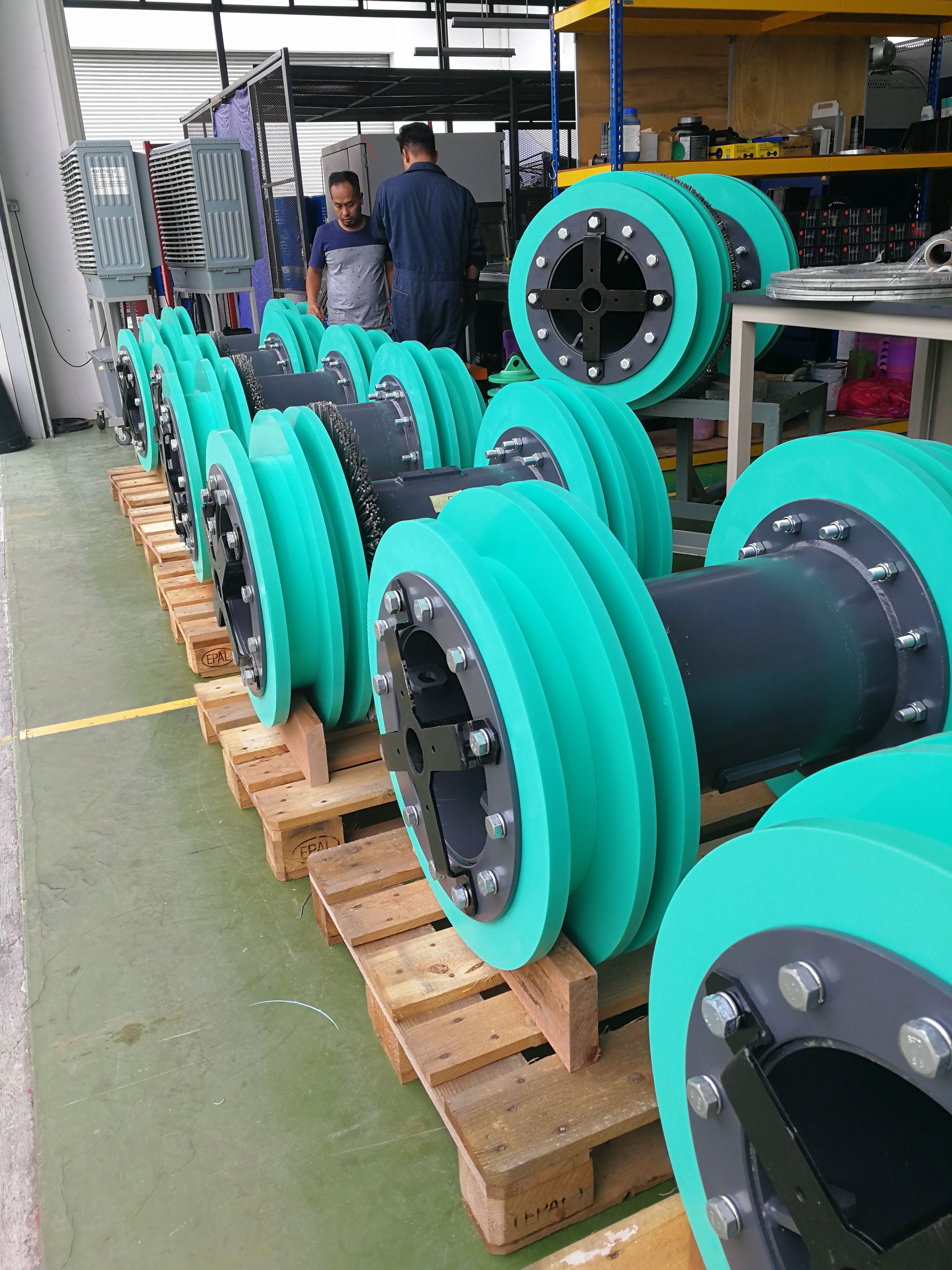

Eureka Efektif’s Bidirectional Cleaning Pig features high-quality polyurethane discs mounted on a hollow metallic body, secured with durable standardized fasteners to ensure strength and easy maintenance.

Specifications
• Sizes: 4” – 48”
• Max Temperature: 100°C
• Min Bend Radius: 3D (1.5D upon request)
• Easy component replacement
• Compatible with multiple accessories

Common Applications
• Debris Removal
• Flooding
• Dewatering
• Batching
• Gauging

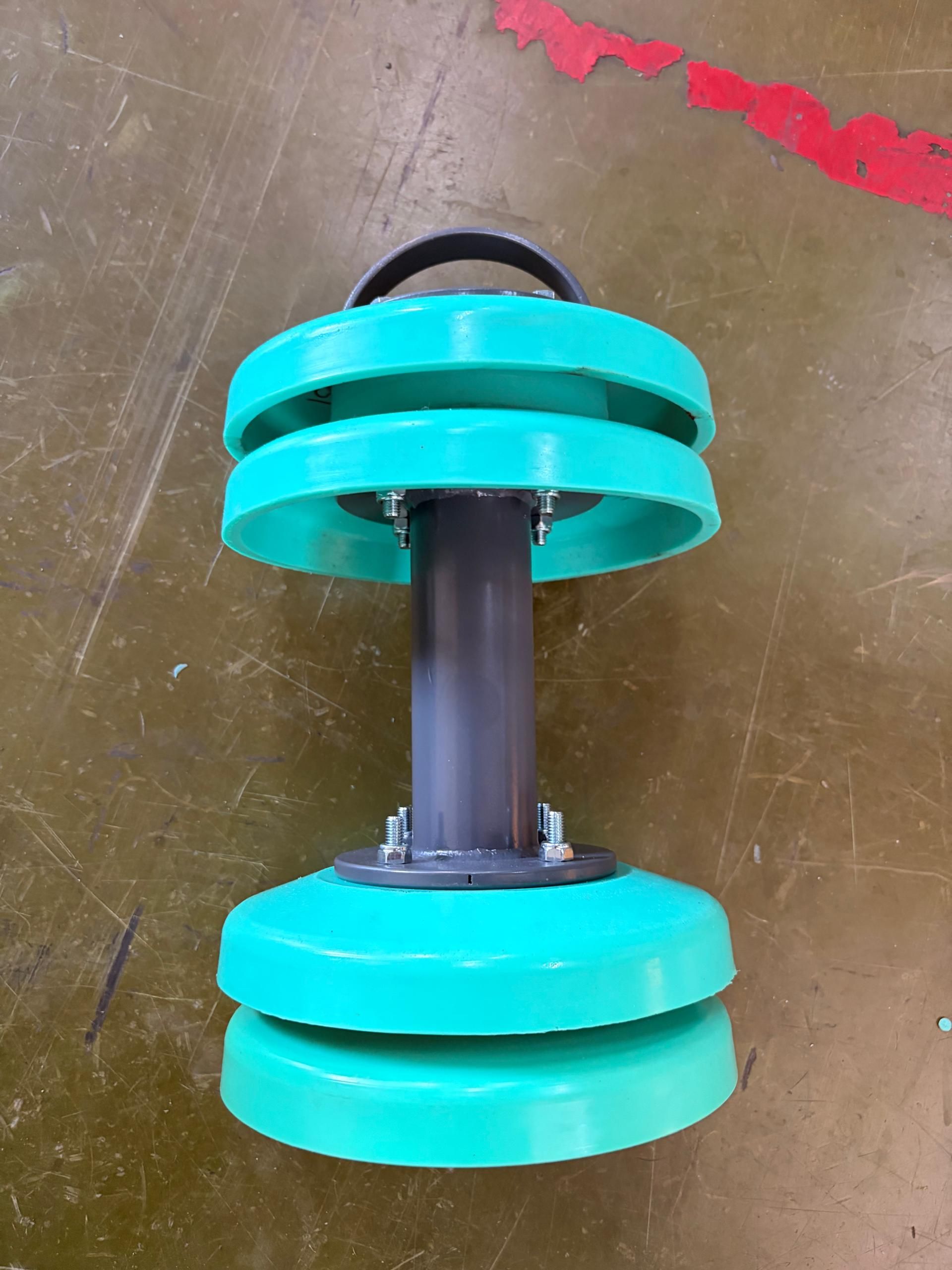

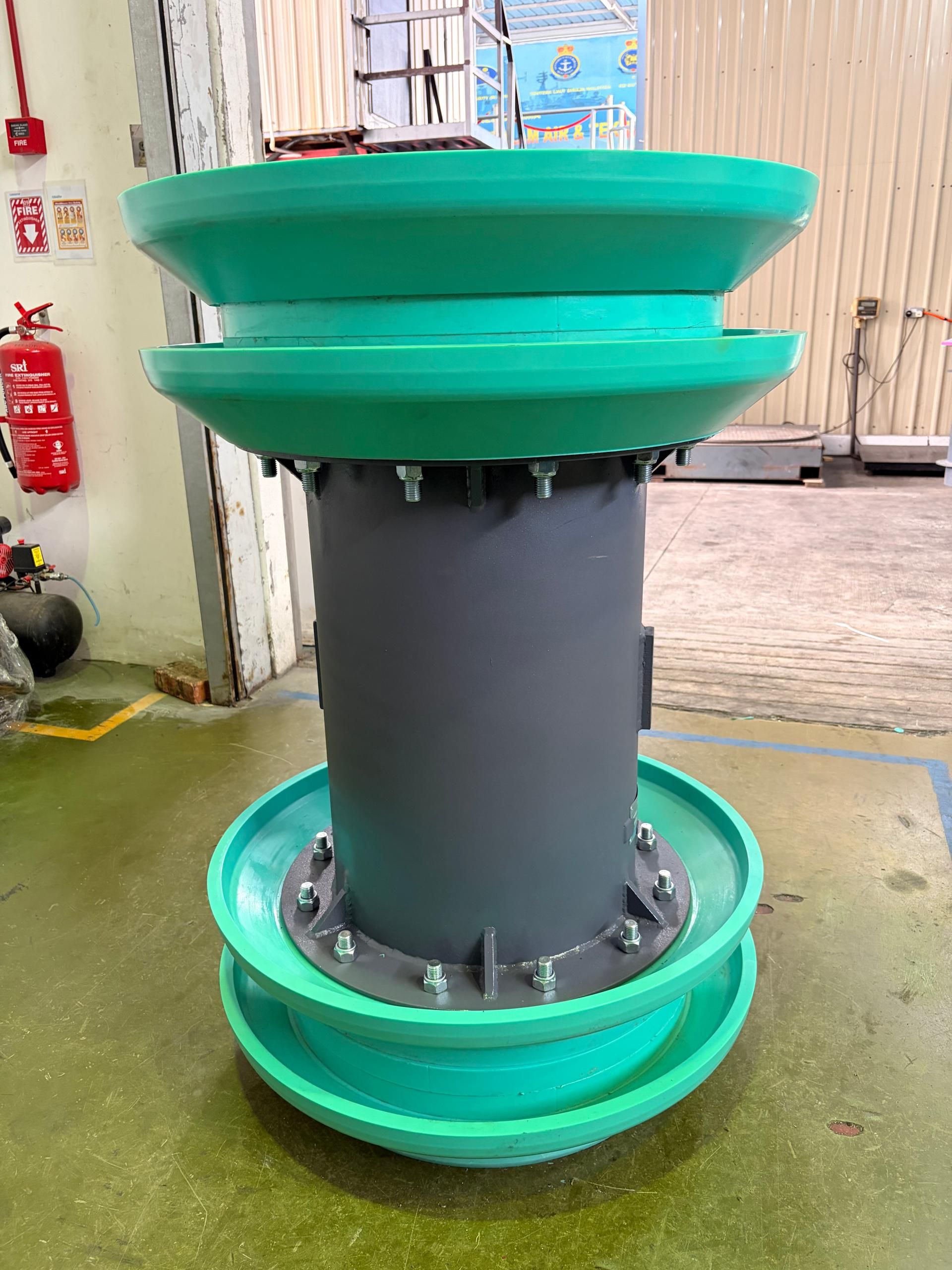

Eureka Efektif’s Cup Pig features high-quality polyurethane cups and discs mounted on a hollow metallic body, secured with durable standardized fasteners to ensure strength and easy maintenance.

Specifications
• Sizes: 4” – 48”
• Max Temperature: 100°C
• Min Bend Radius: 3D (1.5D upon request)
• Easy component replacement
• Compatible with multiple accessories

Common Applications
• Filling
• Batching
• Debris Removal
• Product Displacement

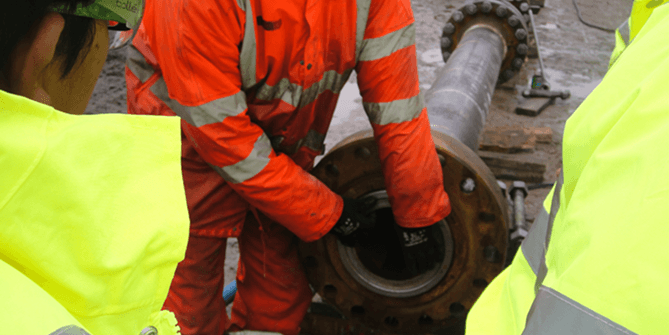

Foam pigs are lightweight and flexible pipeline pigging tools used for pipeline cleaning, batching, drying, and integrity proving without damaging the pipe wall.

As a leading Malaysia pipeline pigging supplier, EUREKA EFEKTIF delivers high-quality foam pigs designed to navigate tight bends, diameter variations, valves, and flow restrictions with reliable performance. Ideal for complex, aged, or non-piggable oil & gas pipelines, foam pigs provide a cost-effective solution for maintenance, pre-commissioning, and operational cleaning across local and global projects.

Specifications
• Sizes: 4” – 48”
• Max Temperature: 100°C
• Flexible design for tight bends and restrictions
• Density variations: Low, Medium, High
• Types: Bare, Criss Cross, Criss Cross with Brush

Common Applications
• Debris Removal
• Drying / Dewatering
• Product Displacement
• Pipeline Cleaning
• Pipeline Pre-commissioning

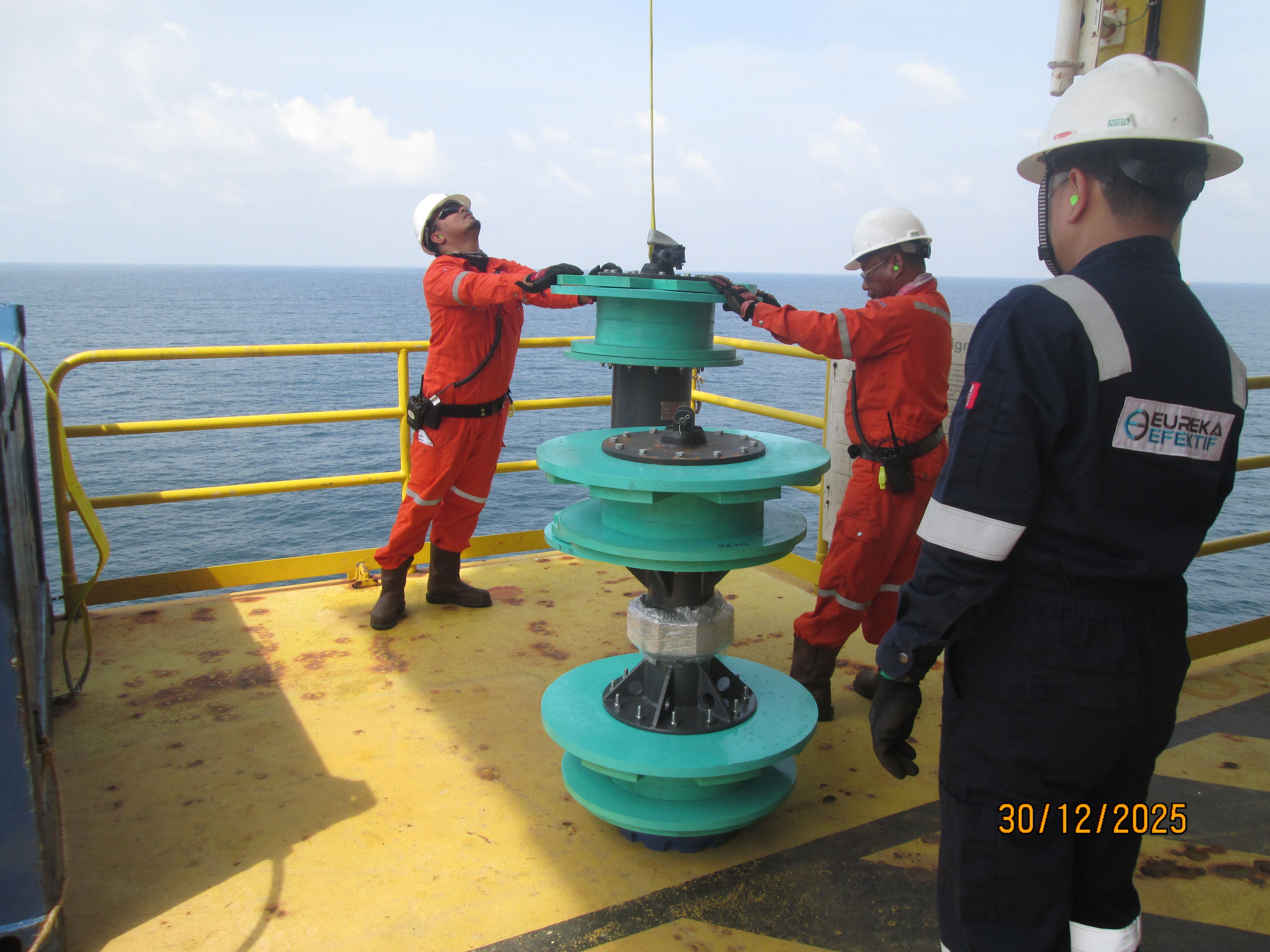

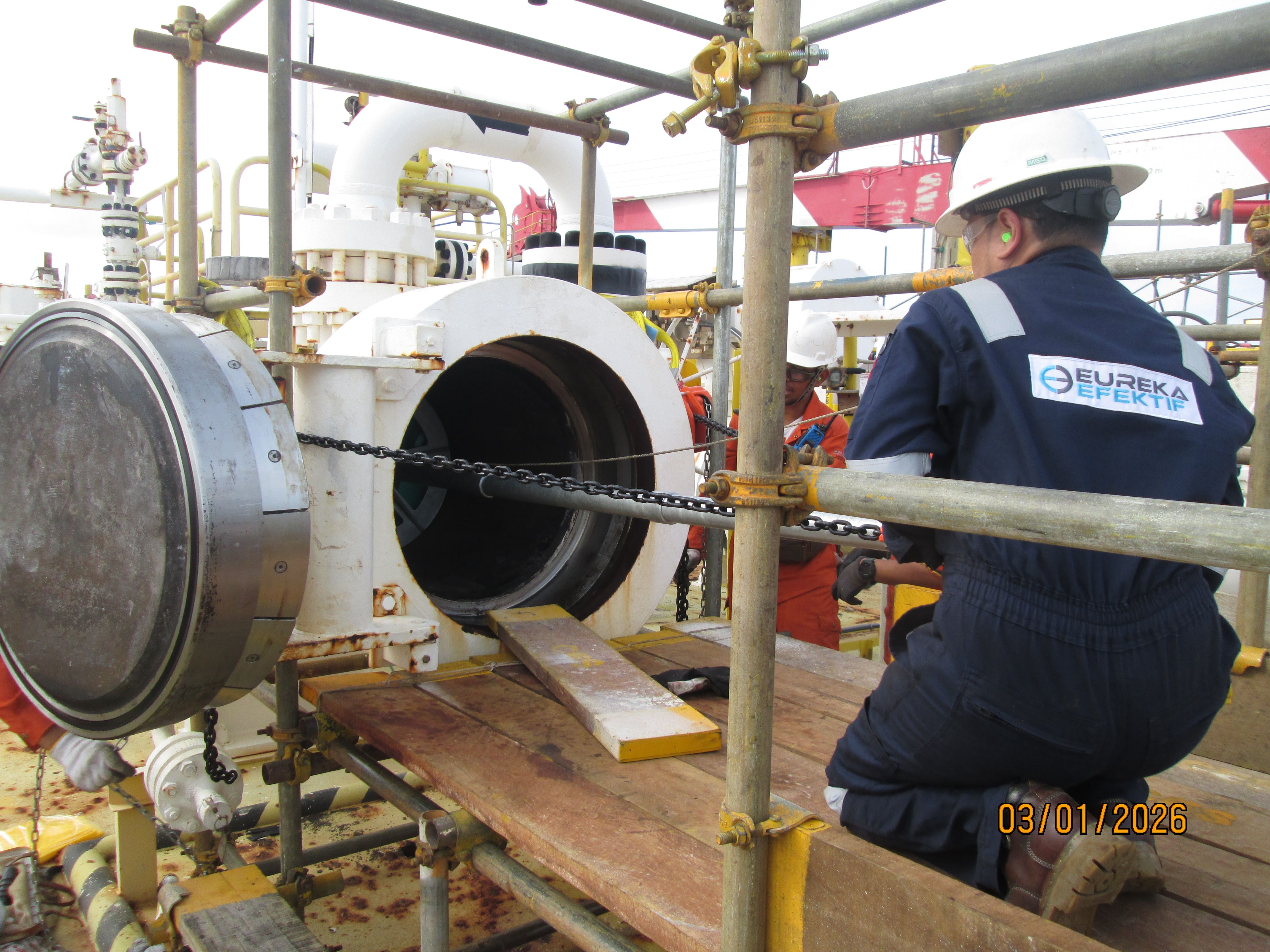

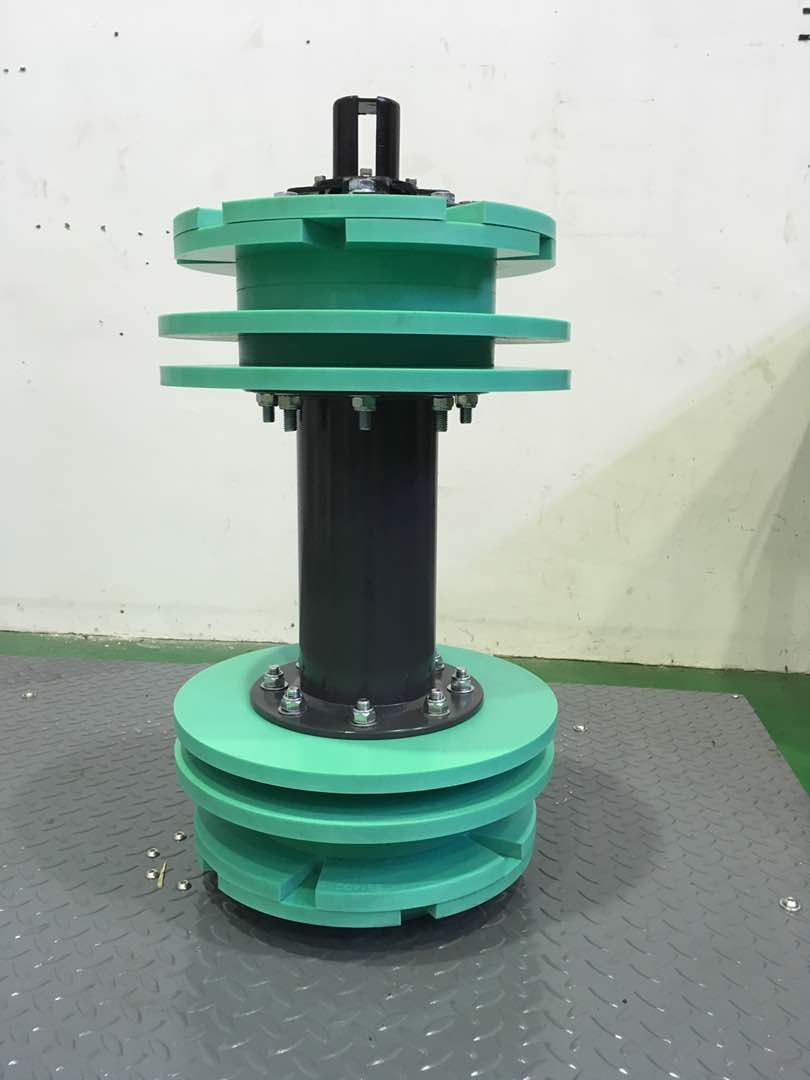

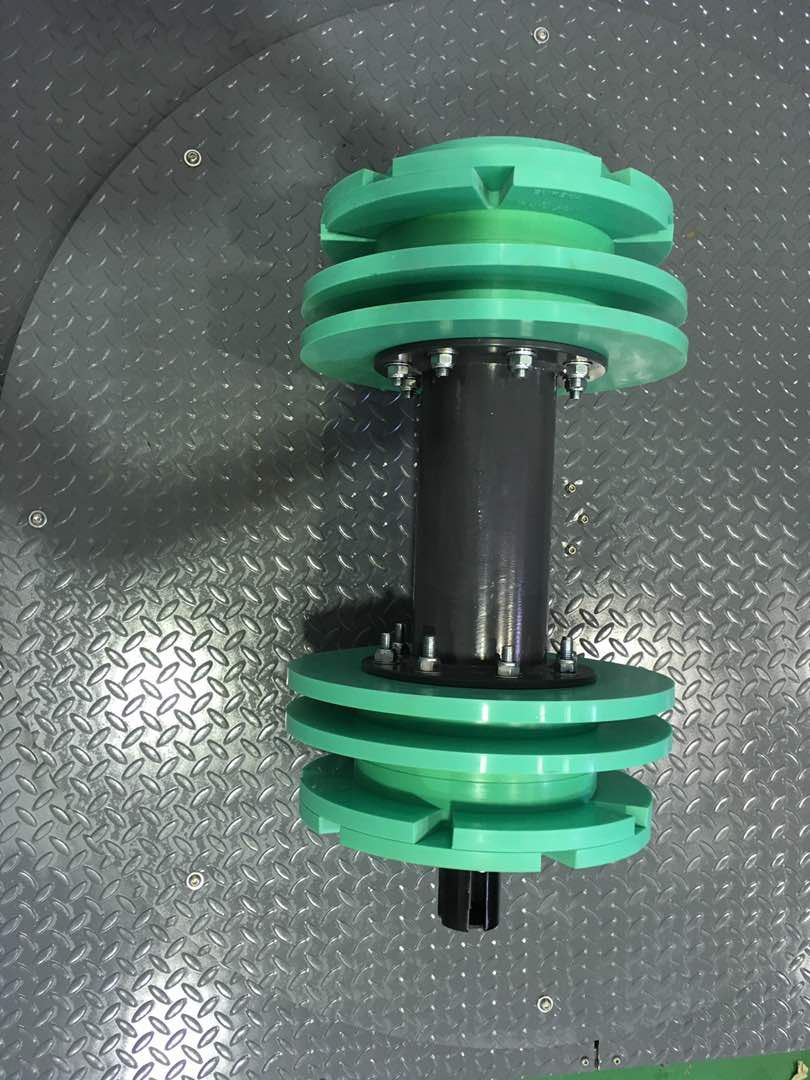

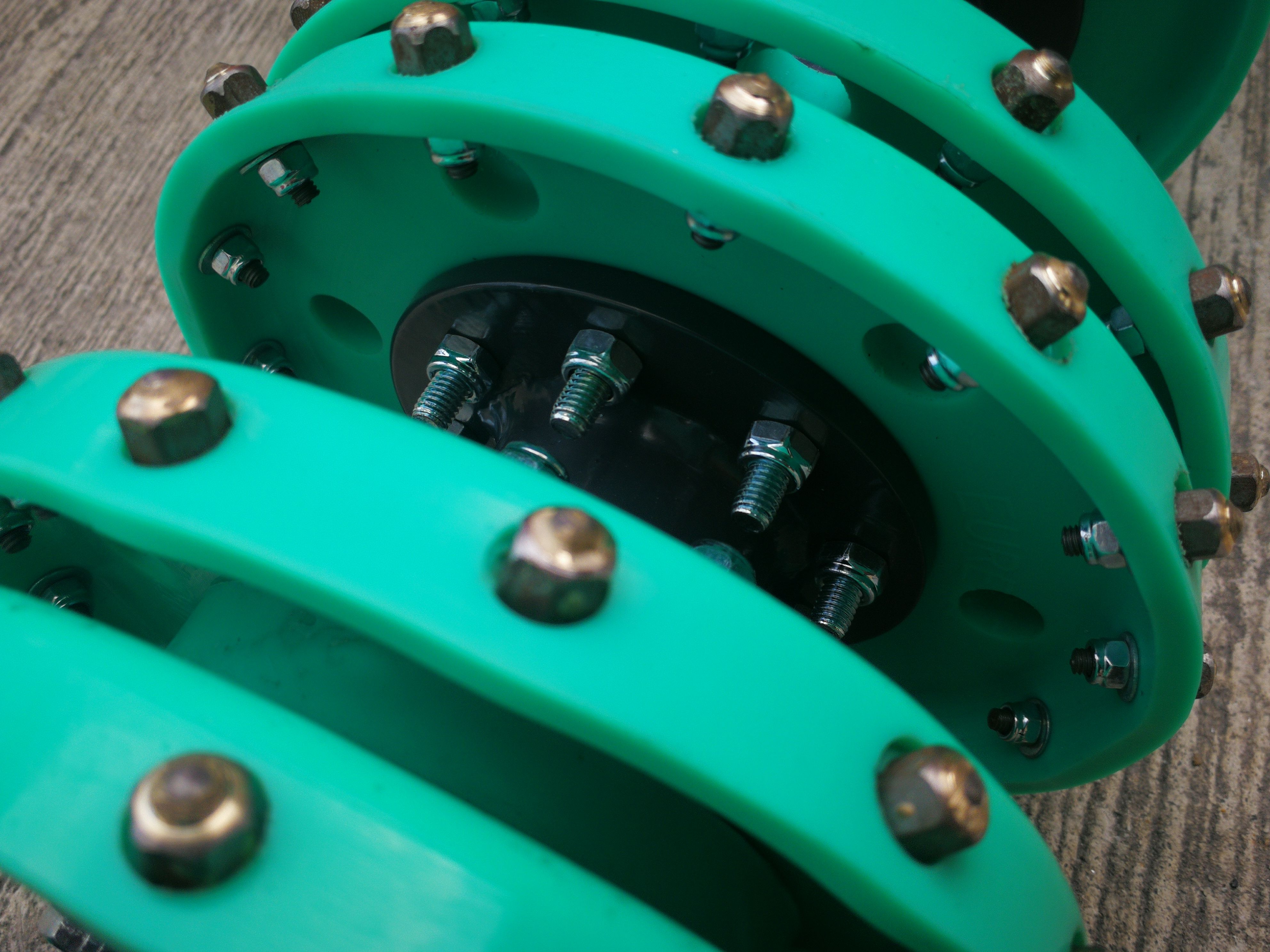

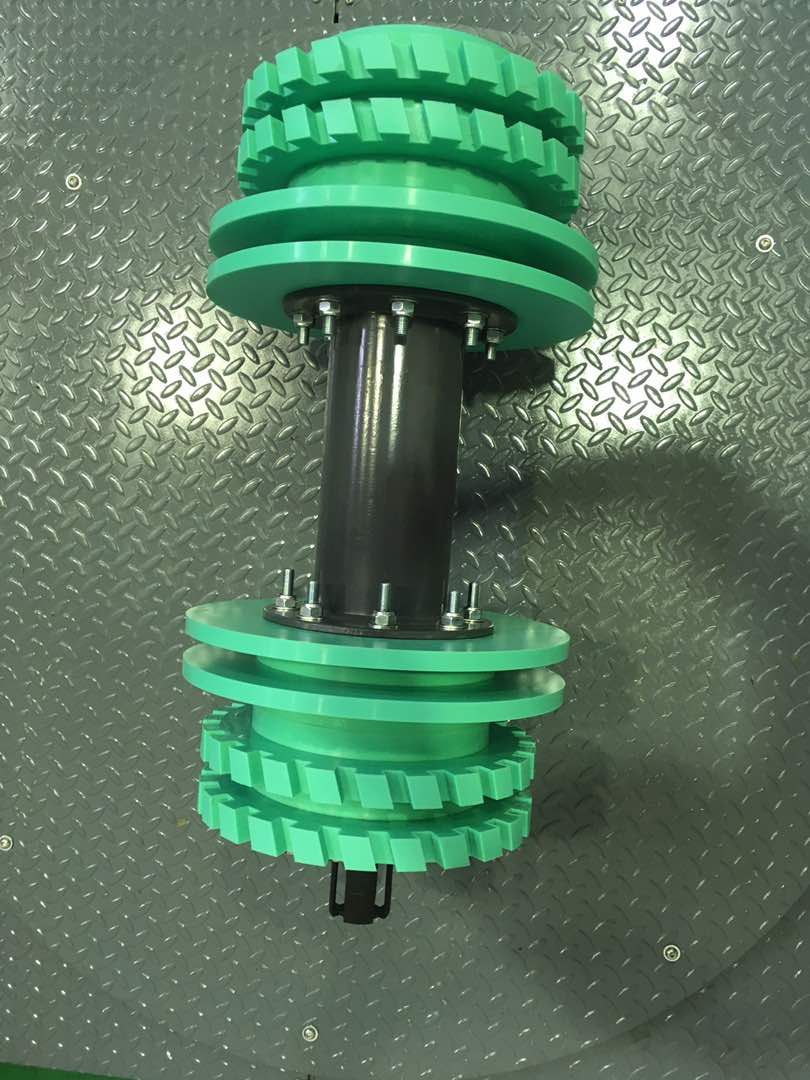

EUREKA EFEKTIF’s Specialised Pigs are designed and engineered for complex and demanding pipeline conditions, delivering high-performance solutions for flow assurance, cleaning, and pipeline integrity management.

Standard Specifications (Applicable to All Specialised Pigs)
• Sizes: 4” – 48” (larger upon request)
• Max Temperature: Up to 100°C (higher upon request)
• Min Bend Radius: 3D (1.5D upon request)
• Polyurethane components with selectable hardness
• Metallic body: Carbon Steel / Stainless Steel options
• Modular design with replaceable components
• Compatible with accessories (brushes, magnets, gauge, transmitter)

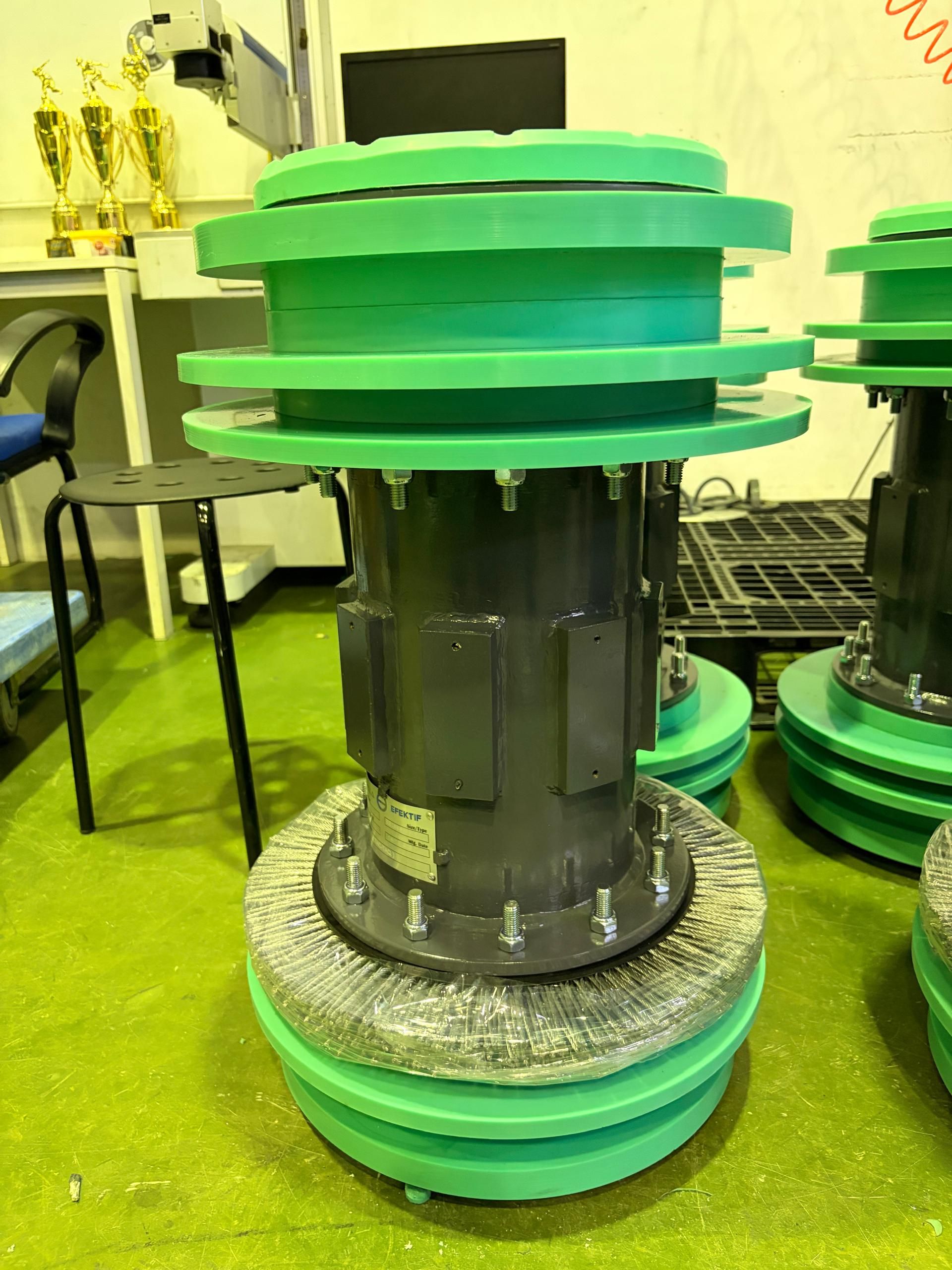

Bypass Pigs
Bypass Pig features an integrated adjustable bypass system to control fluid flow and reduce surge pressure, ensuring stable and efficient pigging in high liquid or condensate pipelines.

Common Applications
• High condensate pipelines
• Liquid flooding control
• Surge pressure reduction
• Operational pigging support

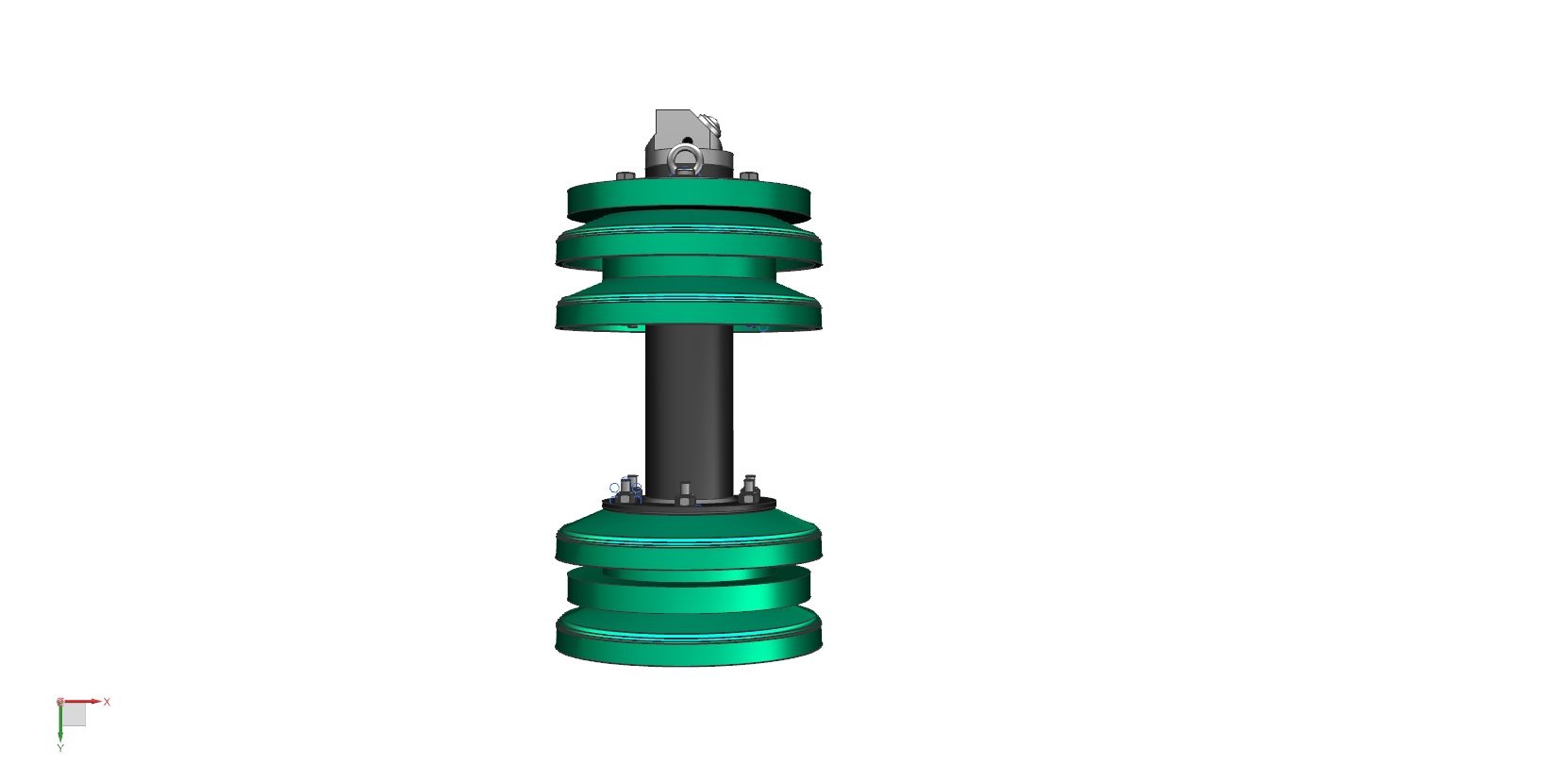

Spray Pigs
Spray Pig is designed for chemical injection and coating, utilising differential pressure to achieve uniform distribution of corrosion inhibitors and treatment chemicals across pipeline interiors.

Common Applications
• Corrosion inhibitor application
• Chemical cleaning
• Internal pipeline coating
• Flow assurance treatment

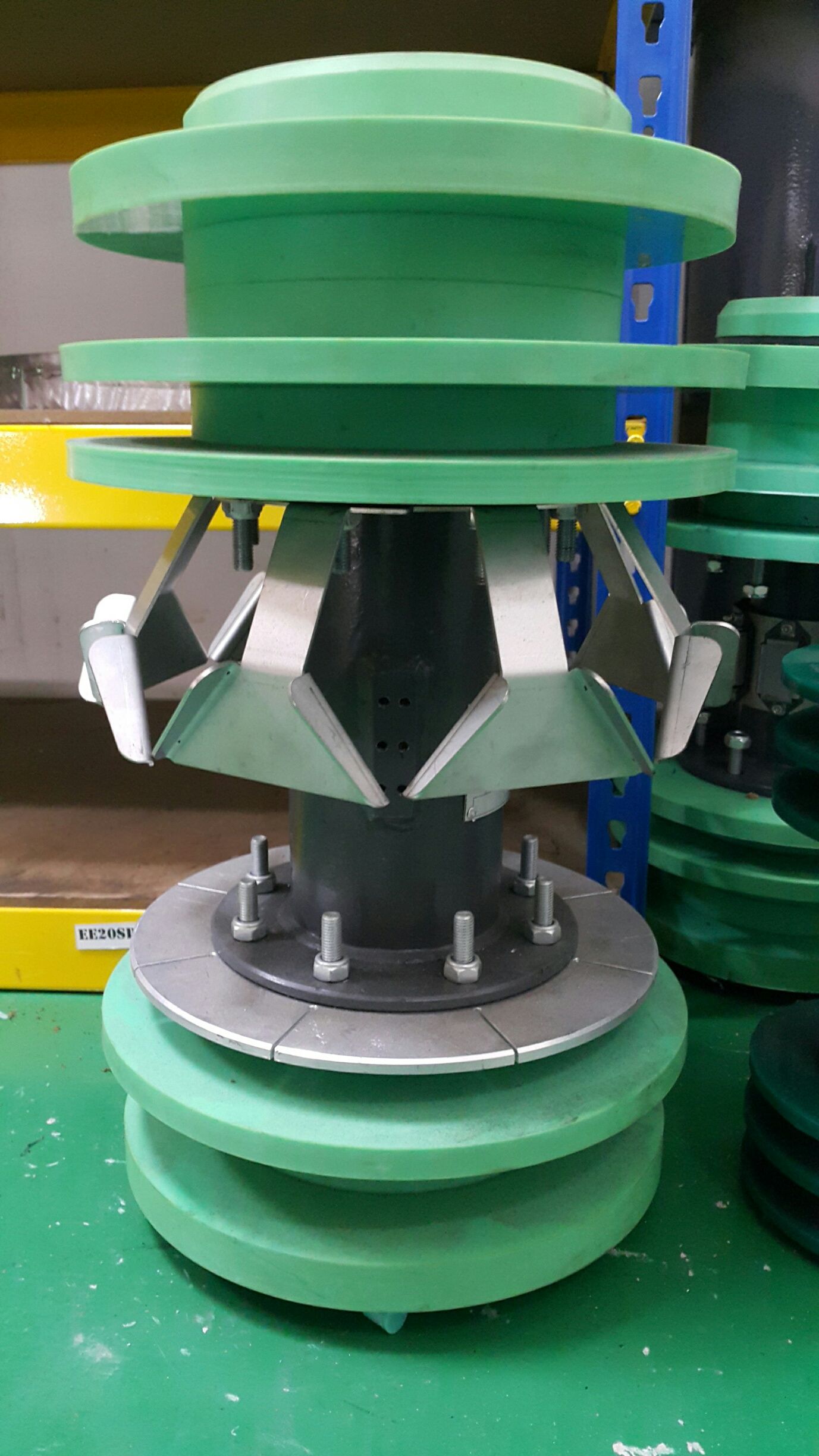

Dewaxing Pigs
Dewaxing Pig is a heavy-duty cleaning solution designed to remove wax and hydrocarbon deposits, using specialised cutting and ploughing components for enhanced performance.

Common Applications
• Wax removal in pipelines
• Progressive pigging operations
• Waxy crude pipelines
• Heavy deposit cleaning

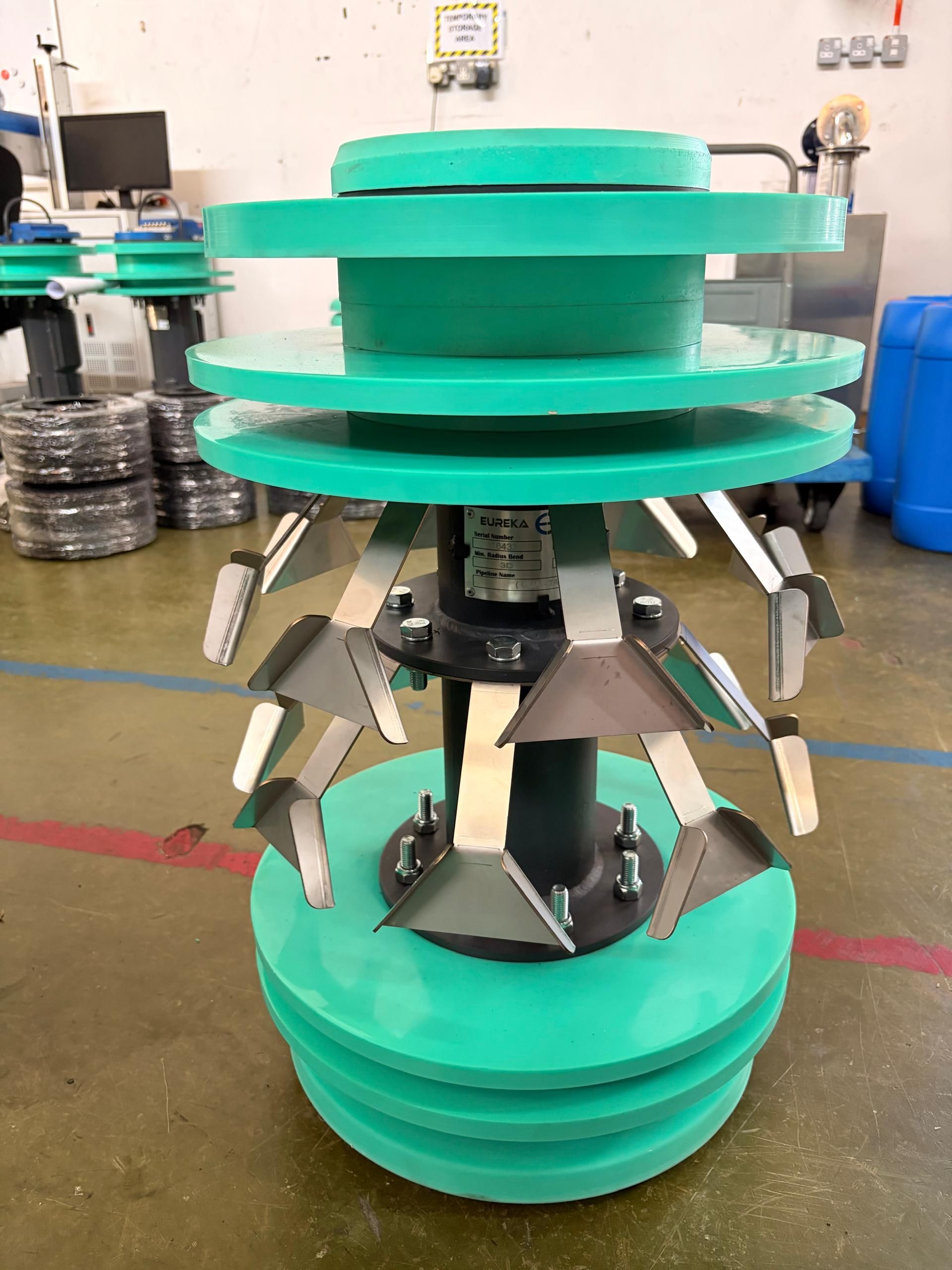

Descaling Pigs

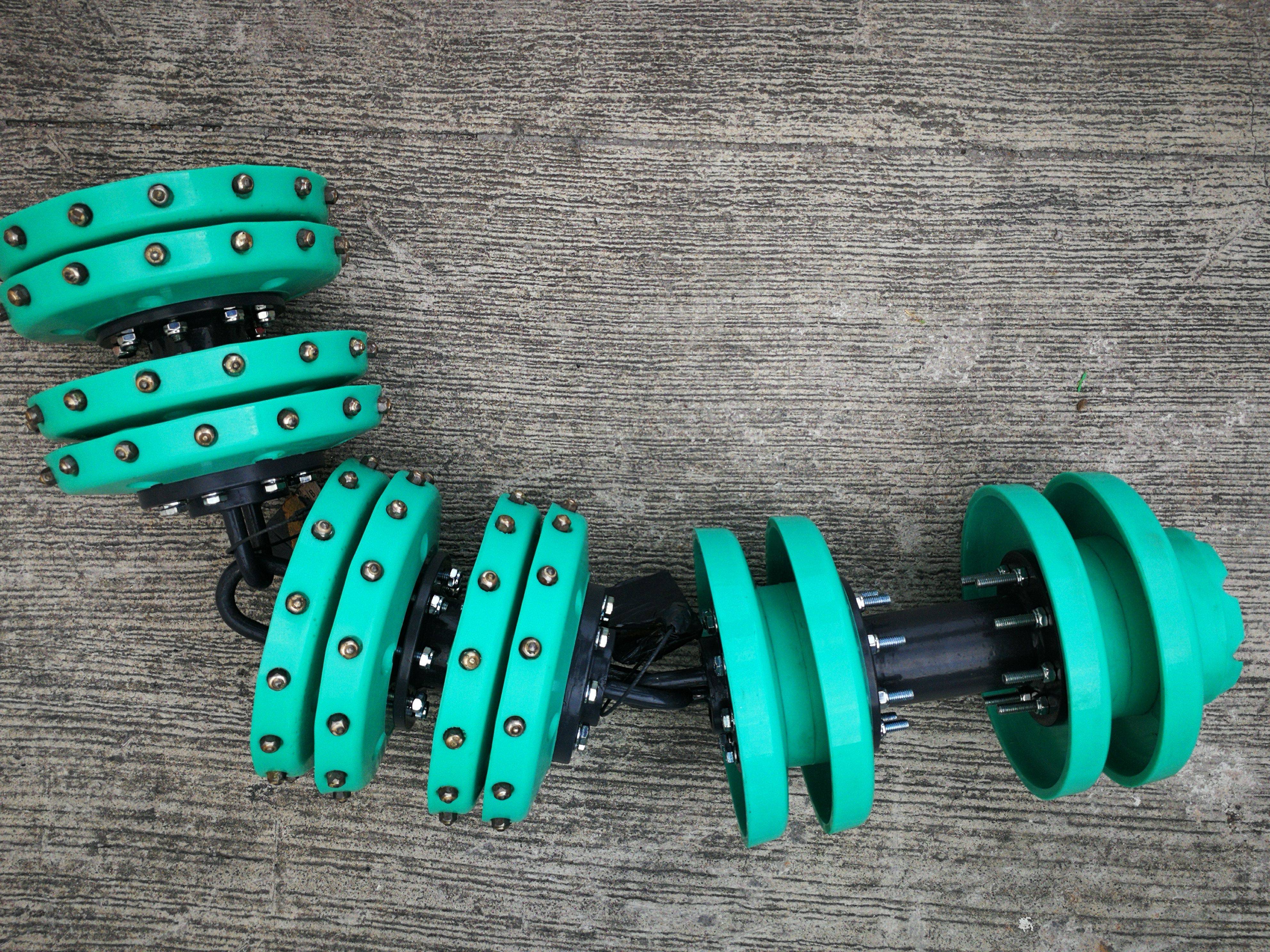

Descaling Pig is engineered for aggressive removal of scale and hard deposits, featuring tungsten-studded components for high-impact cleaning performance.

Common Applications
• Scale removal in pipelines
• Heavy-duty cleaning operations
• Progressive pigging
• Pipelines with severe scaling issues

Dual Diameter Pigs

Dual Diameter Pig is designed to operate efficiently across pipelines with varying internal diameters, maintaining sealing integrity through transitions and complex pipeline configurations.

Common Applications
• Dual-diameter pipelines
• Long-distance pipeline pigging
• Complex pipeline systems
• Inspection and cleaning operations

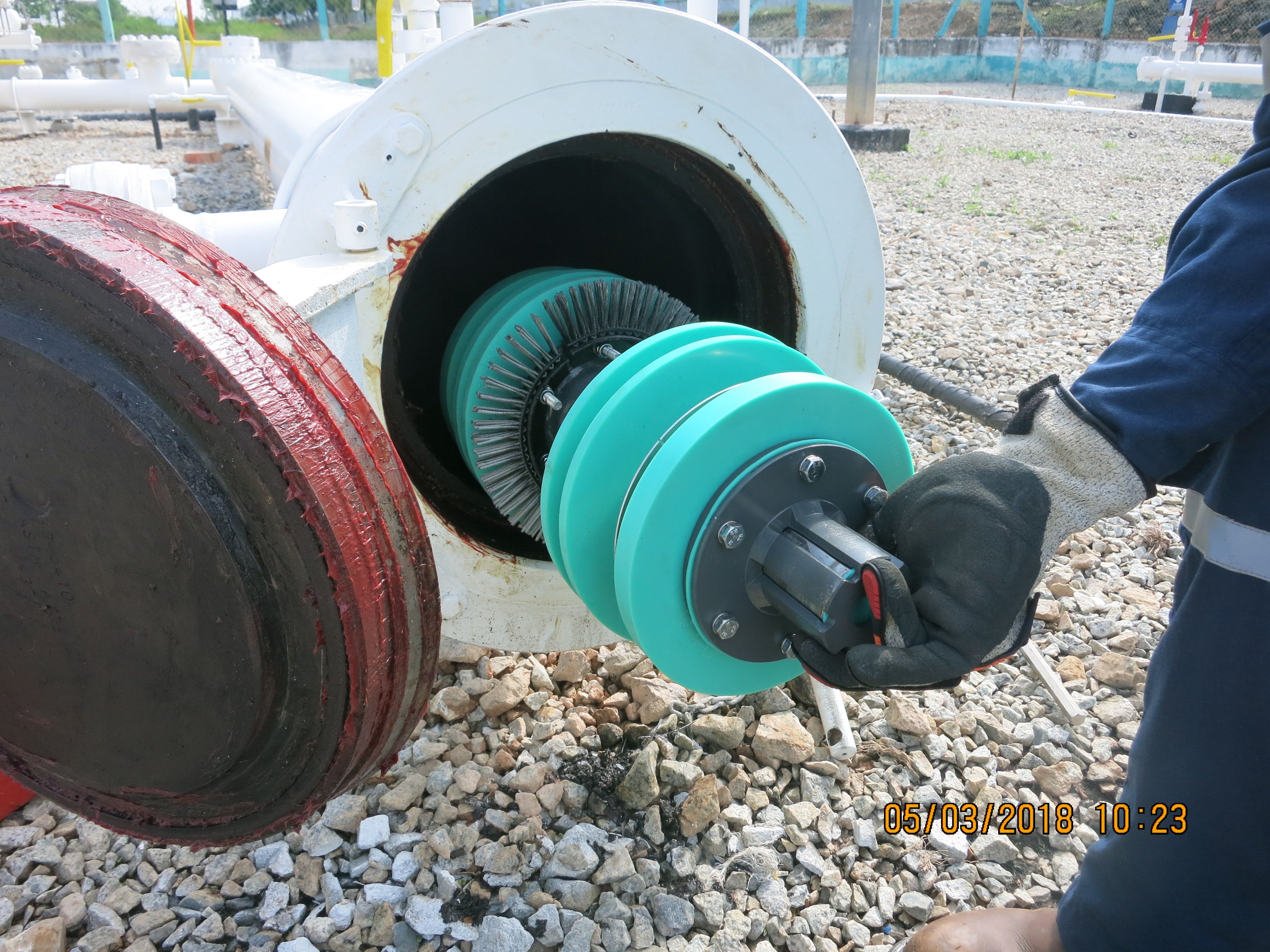

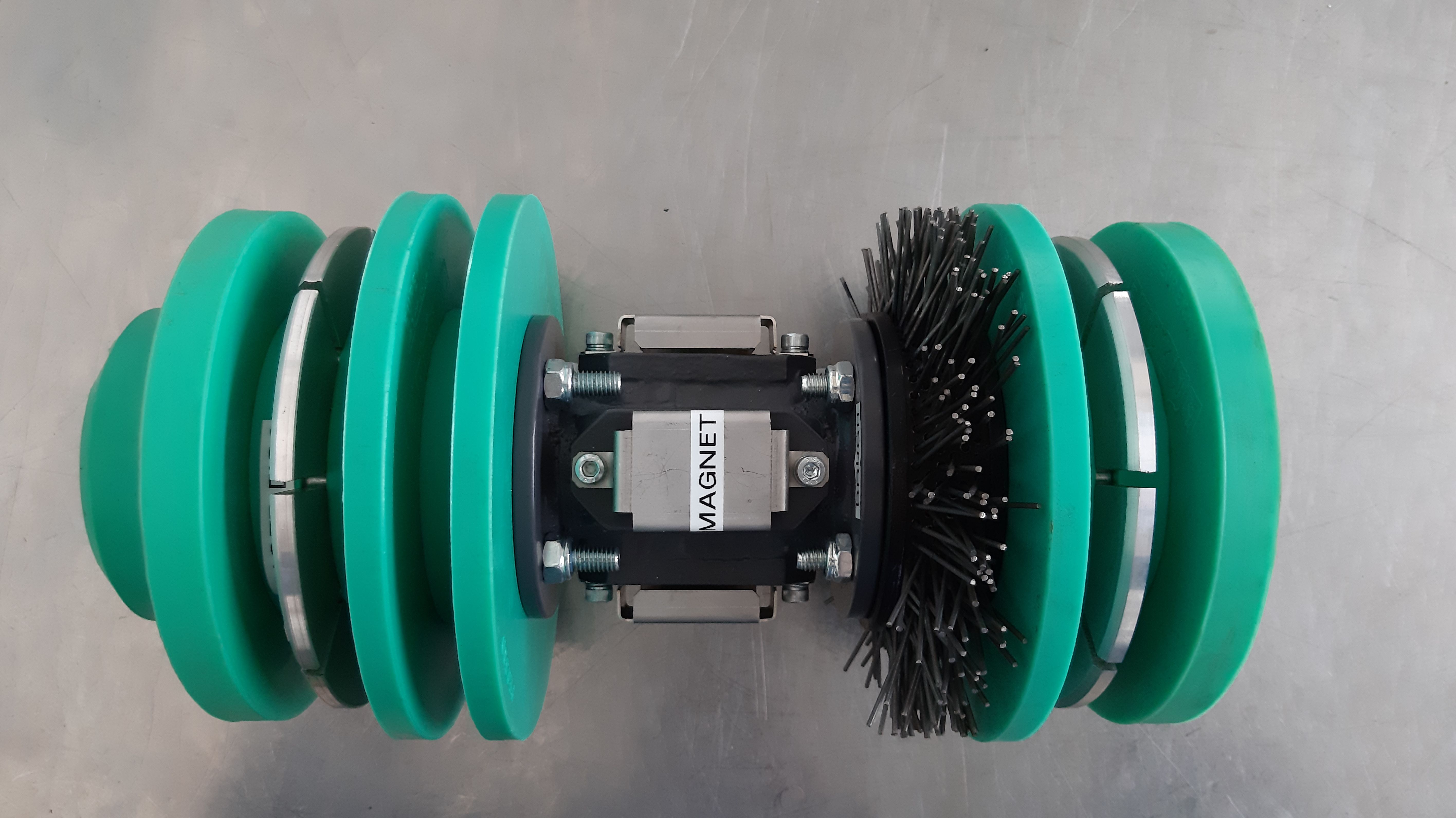

EUREKA EFEKTIF’s Custom Designed Pigs are engineered for complex and non-standard pipeline conditions, delivering tailored solutions that maximise performance, safety, and reliability—positioning us as a leading pipeline pigging solutions provider in Malaysia and globally.

Specifications
• Custom sizes and configurations
• Up to 100°C (higher upon request)
• Designed for specific pipeline conditions
• Polyurethane components with selectable hardness
• Compatible with accessories
• Modular, easy maintenance

Common Applications
• Complex or restricted pipelines
• High wax, scale, or debris conditions
• Specialised cleaning and inspection

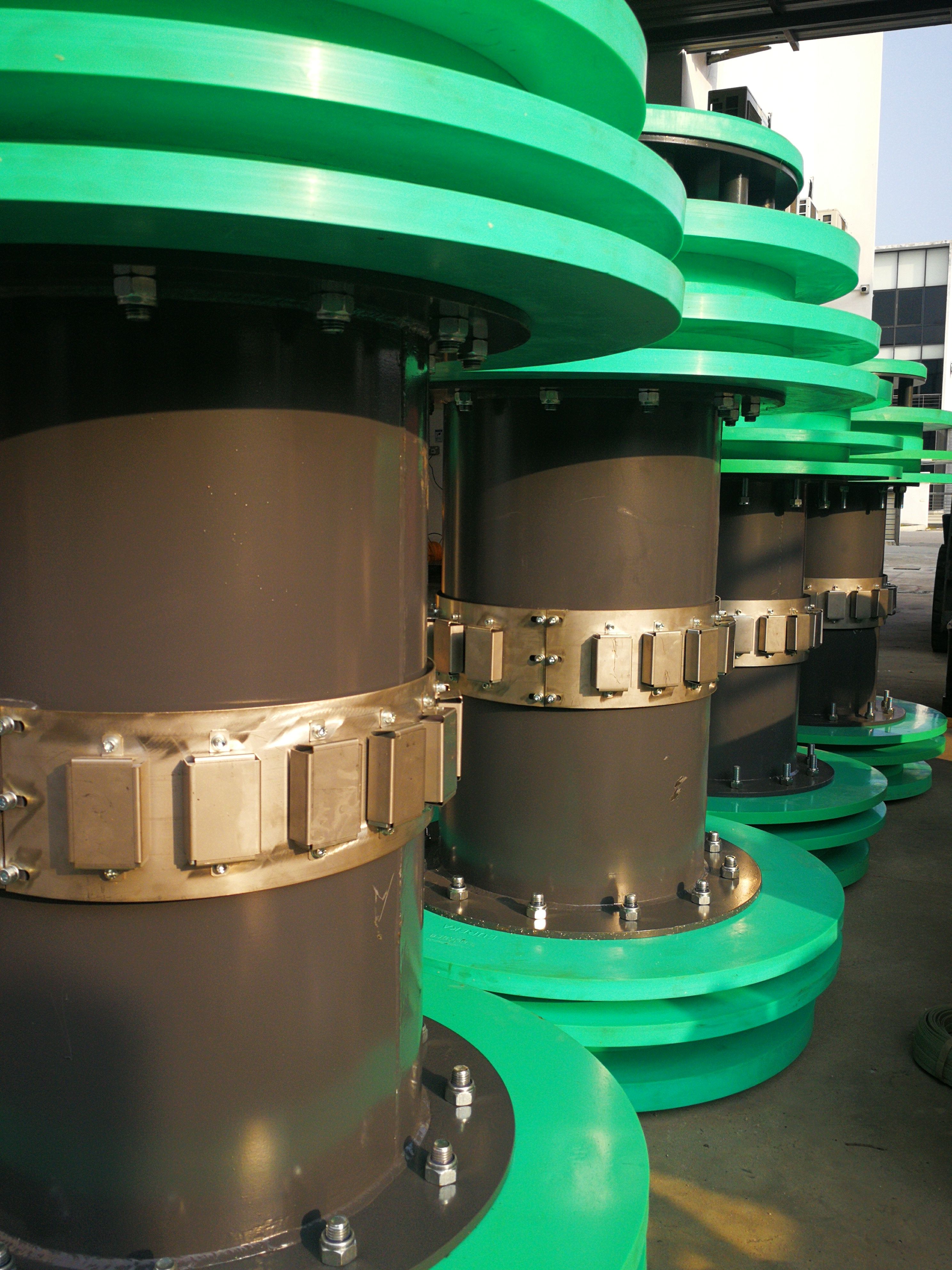

EUREKA EFEKTIF’s Cleaning Pig Spares & Accessories enhance pipeline pigging performance, sealing, and cleaning efficiency across oil, gas, and energy operations.

Cups
High-quality polyurethane cups designed for effective sealing, available in Conical and Standard designs.

Specifications
• Polyurethane construction
• Conical & Standard types
• Easy installation and replacement

Common Applications
• Pipeline sealing
• Batching
• Cleaning operations

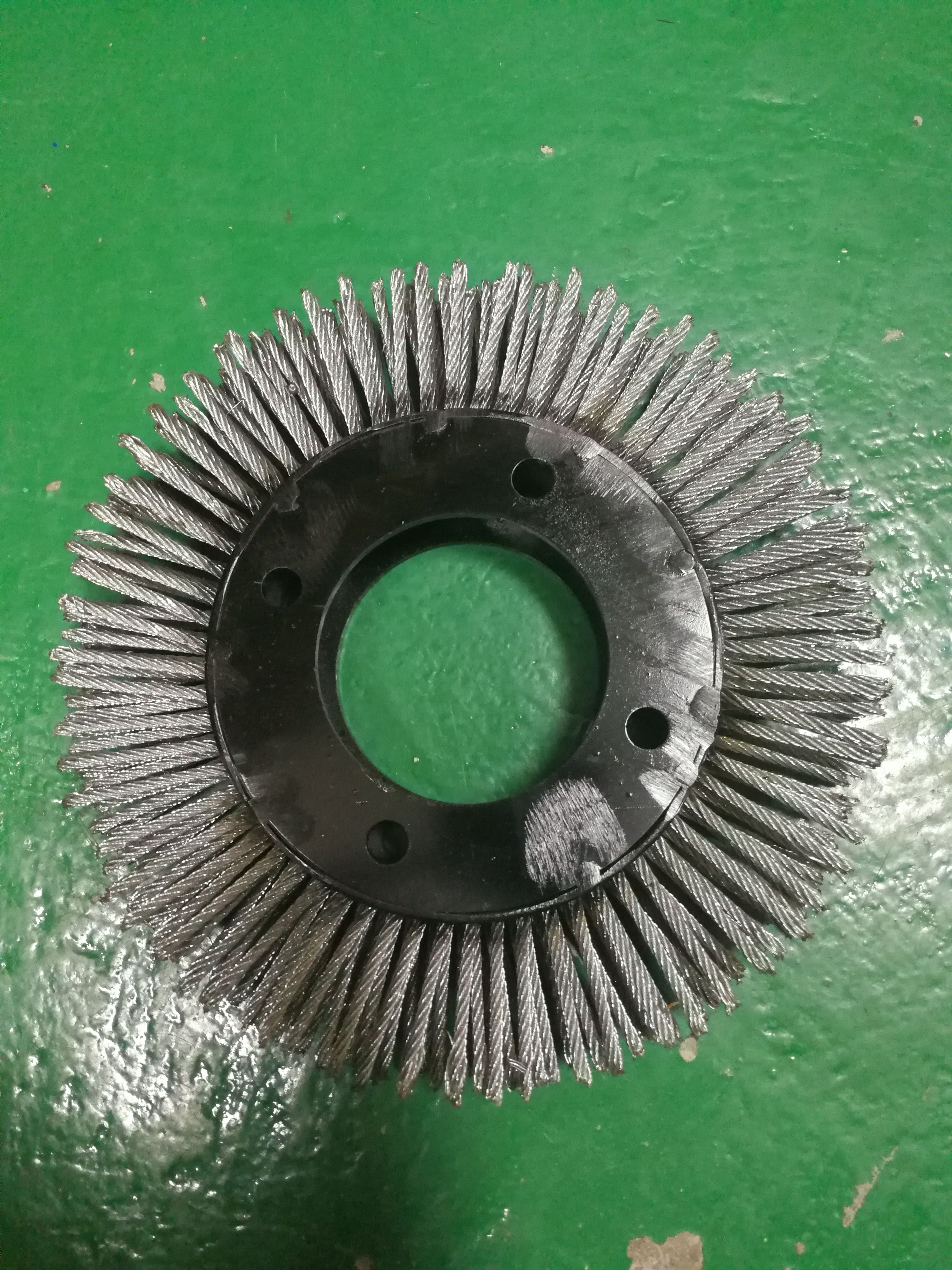

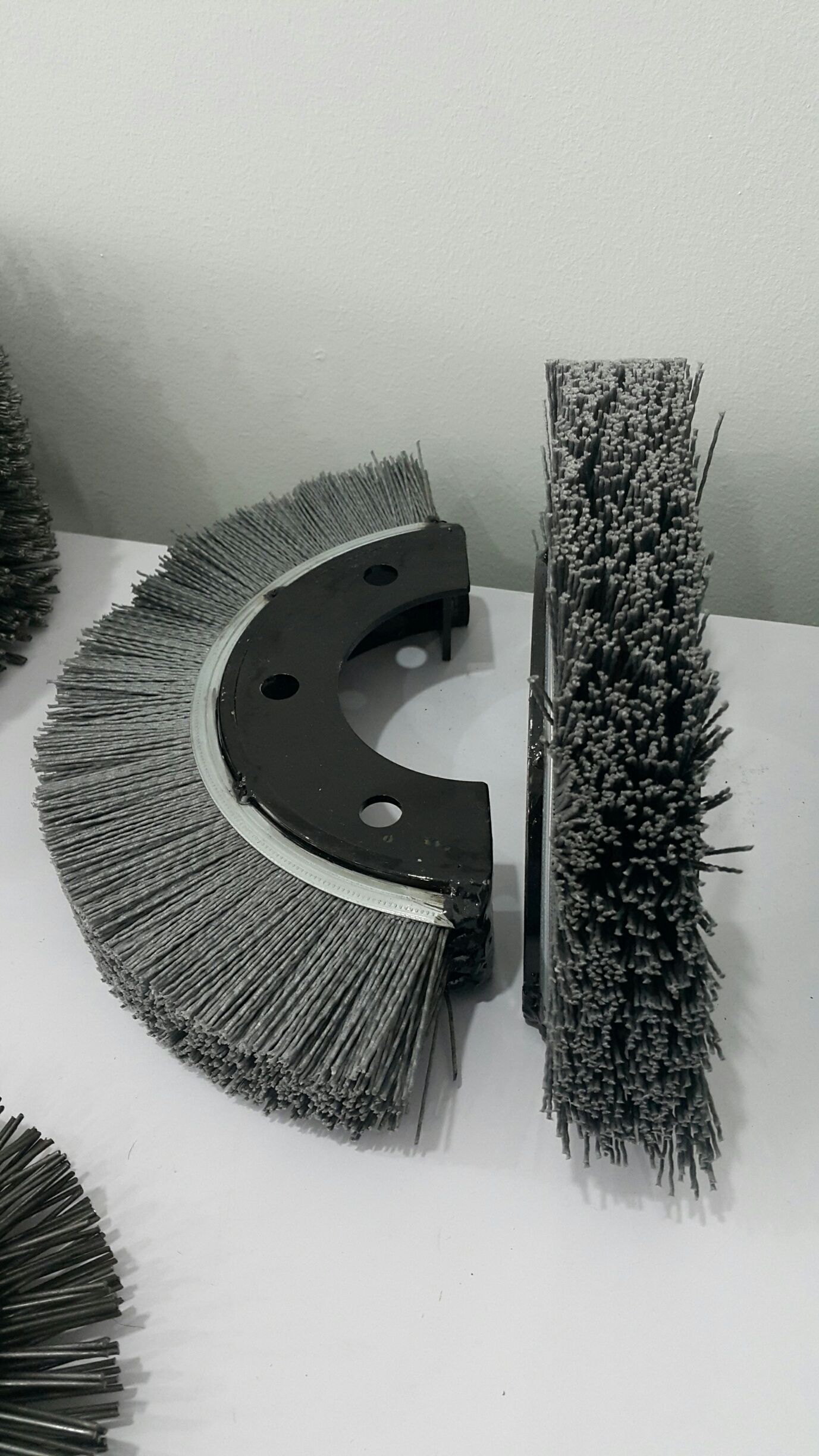

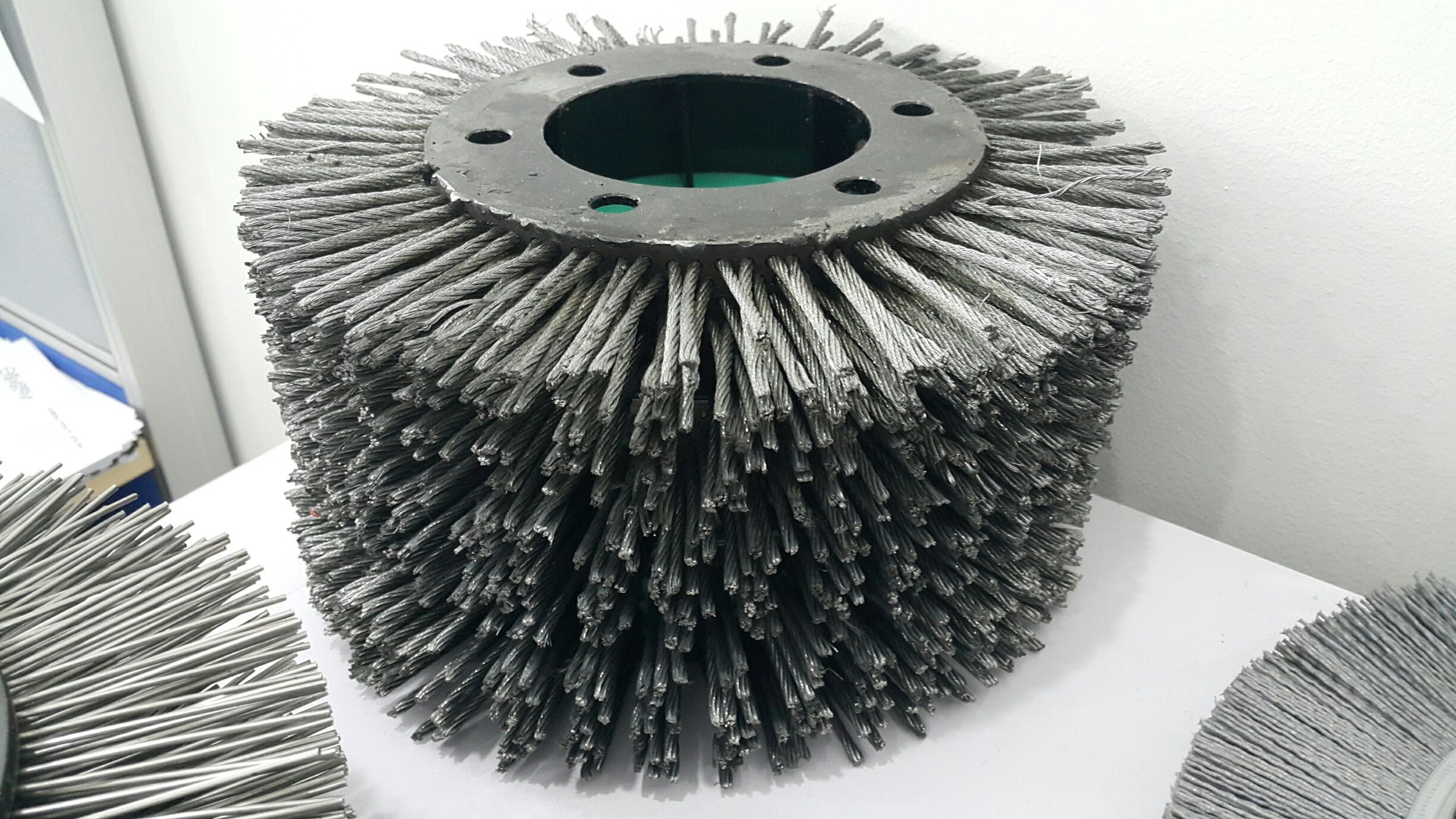

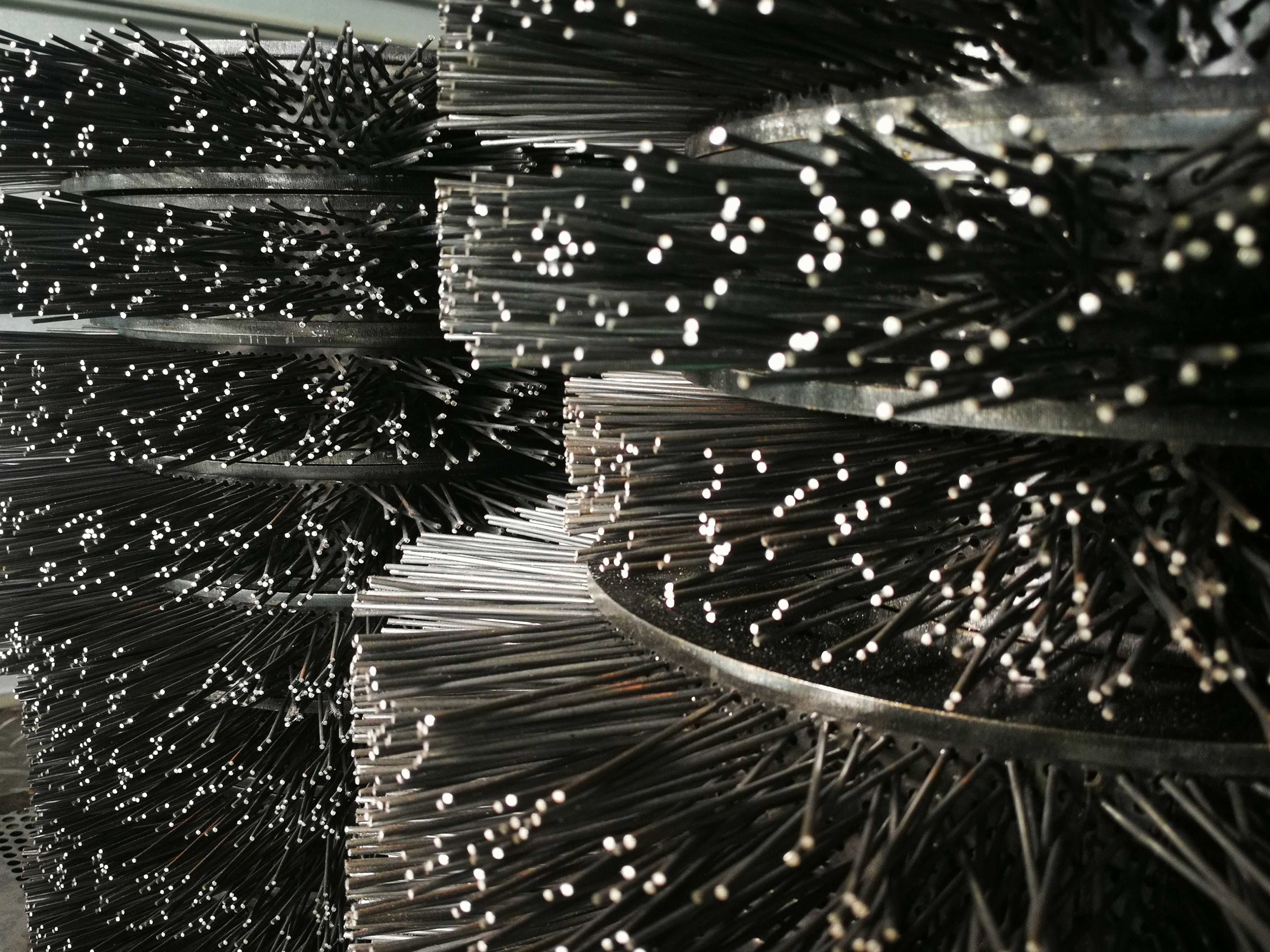

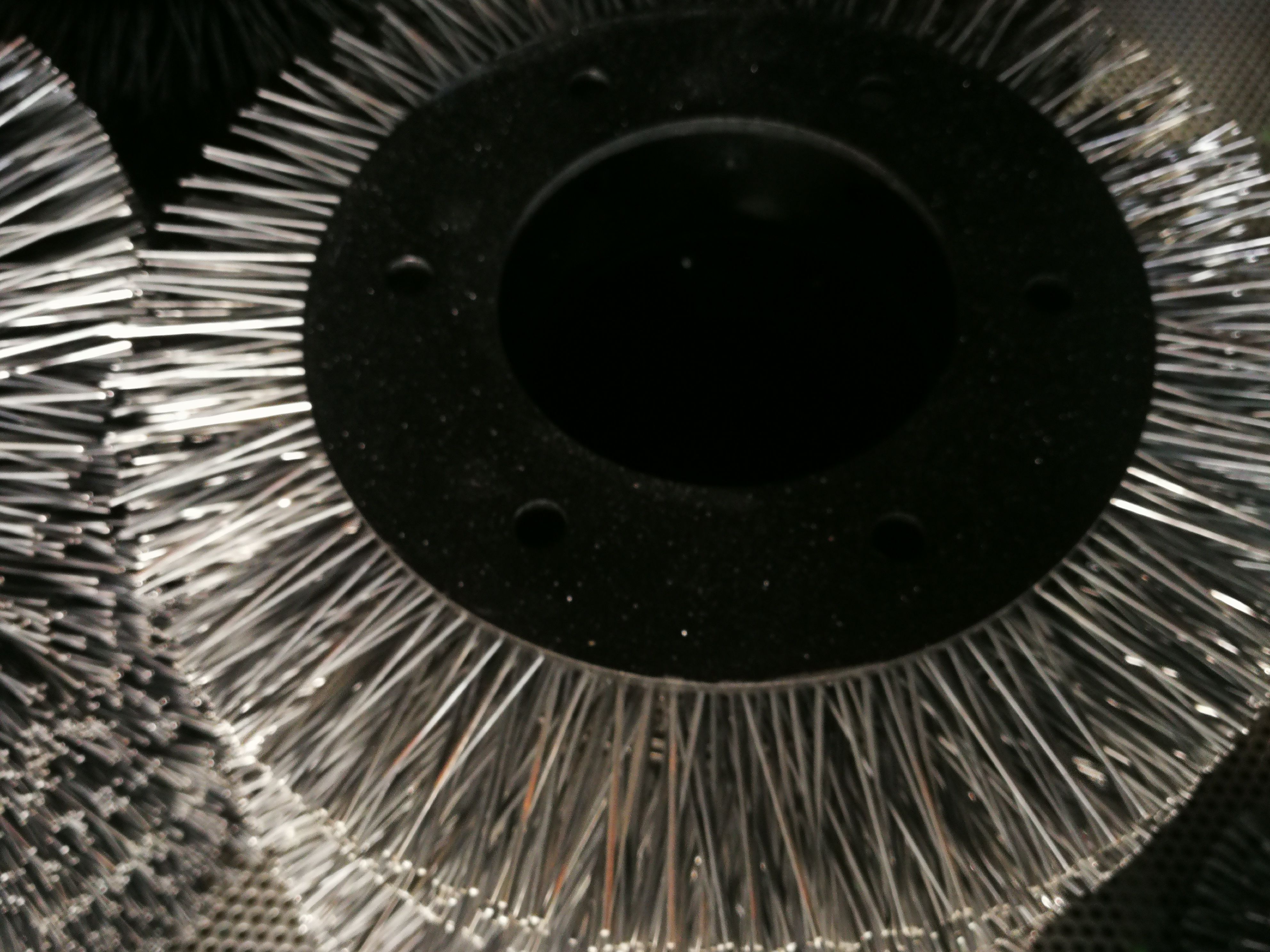

Brushes
Available in multiple designs and materials for varying cleaning intensity.

Specifications
• Designs: Half-moon, Full, Spring Steel
• Materials: Wire, Stainless Steel, Nylon

Common Applications
• Debris removal
• Surface cleaning

Magnets
Mounted on pigs for metal debris collection and tracking.

Specifications
• Magnet ring or cased type
• Optional trigger magnets

Common Applications
• Metal debris removal
• Pig tracking

Gauge Plates
Used for pipeline gauging and integrity checks.

Specifications
• Aluminium construction
• Slotted / Non-slotted
• 90%–95% pipeline ID

Common Applications
• Geometry check
• Pre-ILI verification

EUREKA EFEKTIF’s Pigging Support Equipment is designed to ensure safe, efficient, and reliable pigging operations, supporting handling, launching, and retrieval of pipeline pigs across various site conditions.

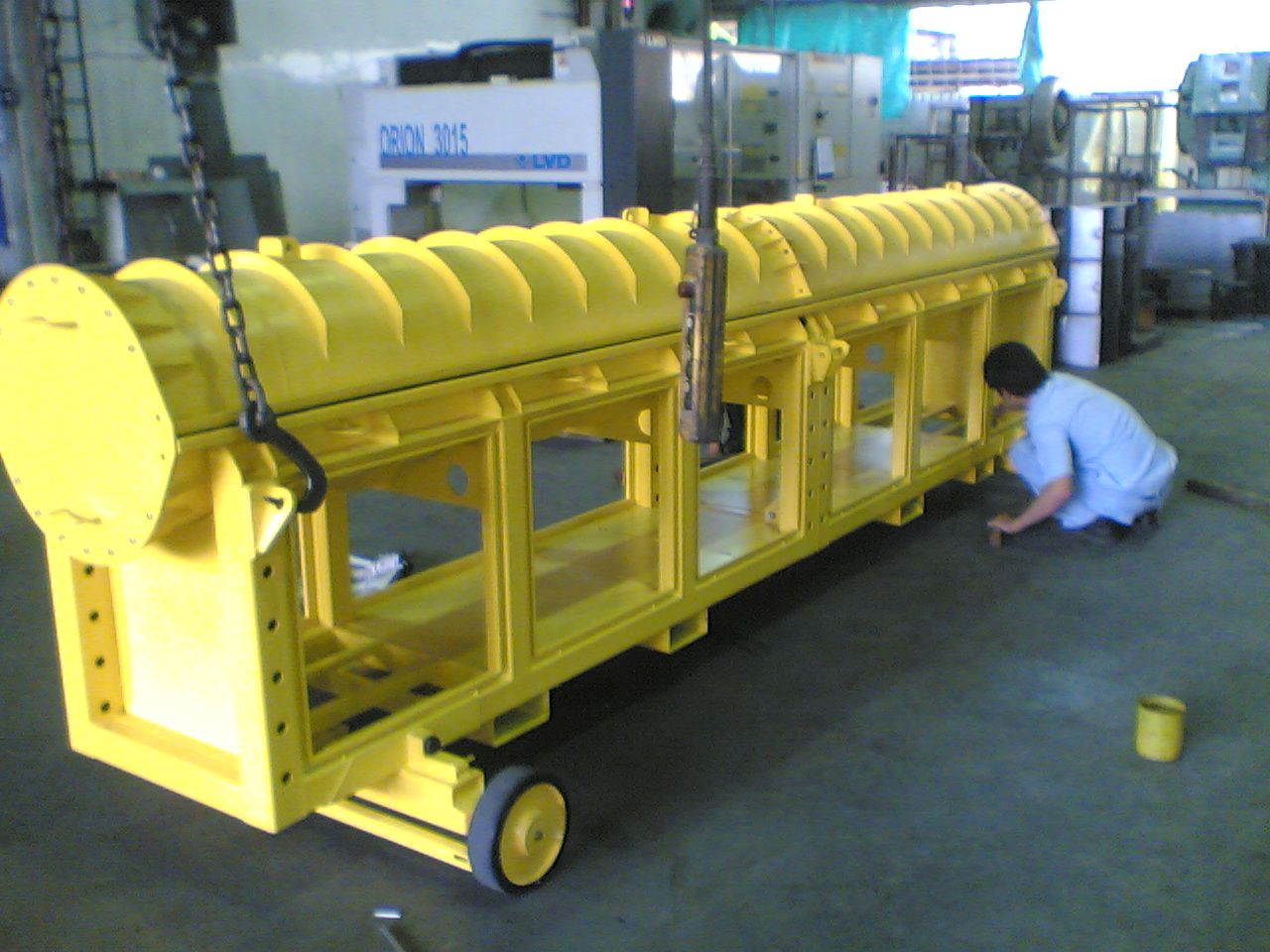

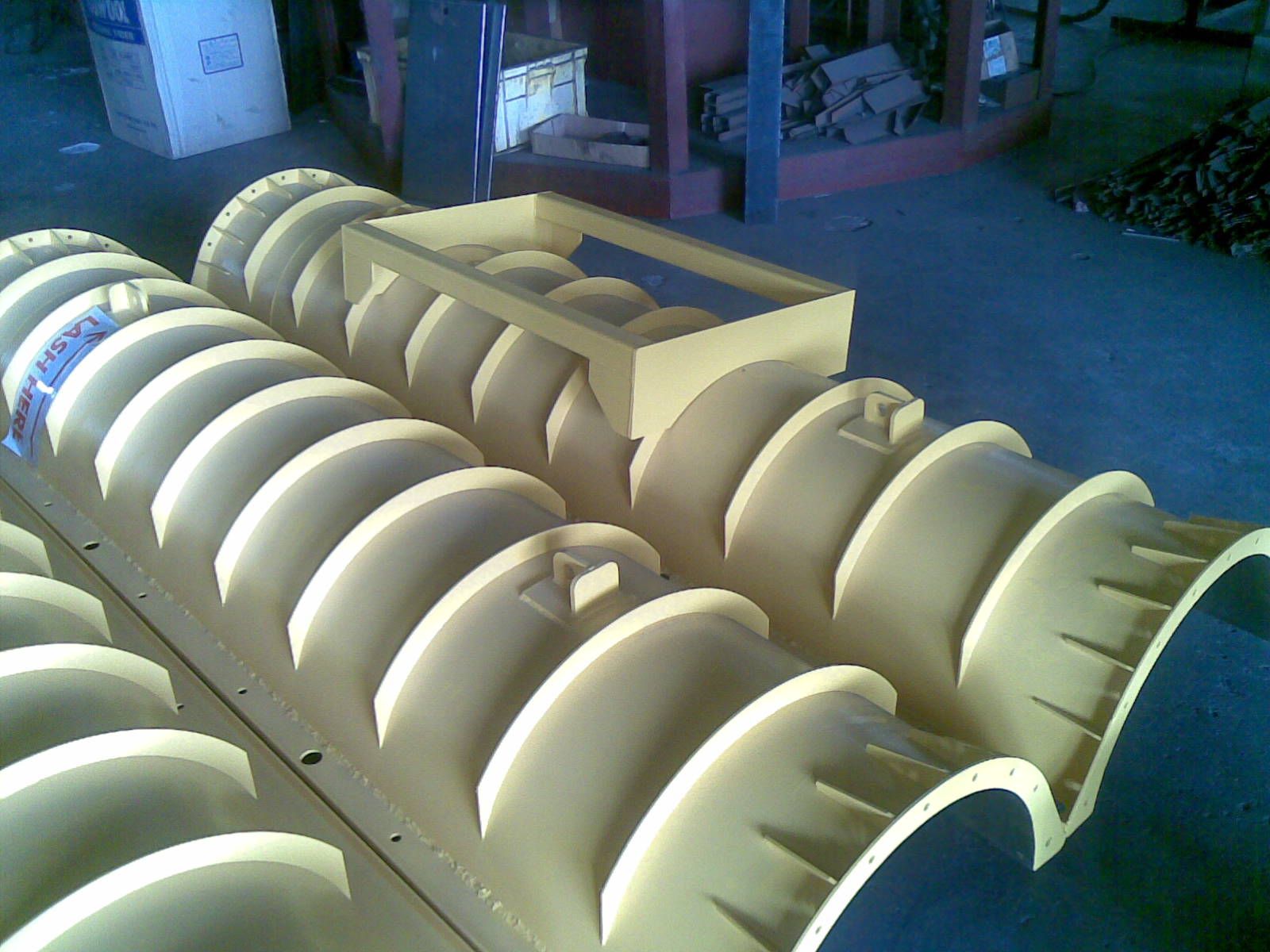

Pig Tray
Designed for safe transportation of pipeline pigs and ILI tools, customised based on operational requirements.

Specifications
• Custom-built to client requirements
• Suitable for cleaning pigs and ILI tools
• Optional pneumatic or mechanical pusher

Common Applications
• Pig transportation
• Launching and receiving support

Pig Catcher
Manufactured for safe pig retrieval, available in various sizes and pressure ratings.

Specifications
• Custom sizes and pressure ratings
• Perforated metallic construction
• Design based on client specifications

Common Applications
• Pig receiving operations
• Pipeline maintenance support

Pusher & Pulling Rod
Designed to assist pig insertion and retrieval operations with enhanced control and safety.

Specifications
• Modular rods with extendable length
• Hooks and handles included
• Rollers for alignment and centralisation
• Anti-spark coating / aluminium option available

Common Applications
• Pig launching
• Pig retrieval
• Maintenance operations
